Luthor Big - Professional DIP SWITCH
Application usages
Description

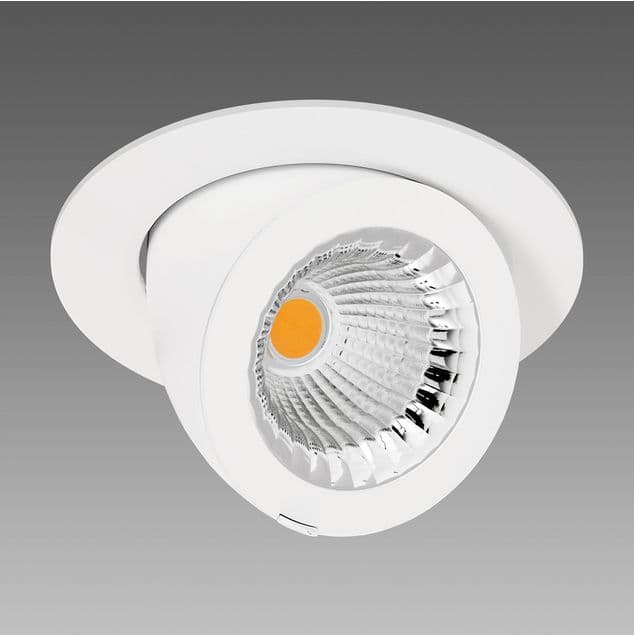

The range of Luthor recessed spotlights now comes in three sizes. This makes it possible to fit the luminaires into all recessed cutouts using products of the same size.The adjustable Luthor LED recessed spotlights offer technologically advanced light: thanks to their robustness, excellent quality and high performance, Luthor LED spotlights are an ideal product for lighting large commercial areas.DIP switch adjustment: the luminaire is equipped with a built-in DIP switch driver for setting the output current; this will enable to choose the right light flux for each lighting design.The chance to choose the needed LED pilot current will allow you to have the right amount of power adjusted to any given design requirement. Choosing a lower current will increase the efficiency and improve energy savings, while a higher current will provide more light and make it possible to reduce the number of luminaires installed.
| Code | Wiring | LED | TotW | K - Lumen Output - CRI – Degrees |
|---|---|---|---|---|
| 22085910-00 | CLD | 1050 | 39 | 4000K - 4409lm - CRI93 - 56° |
| 22085910-00 | CLD | 850 | 32 | 4000K - 3691lm - CRI93 - 56° |
| 22085910-00 | CLD | 900 | 33 | 4000K - 3876lm - CRI93 - 56° |
| 22085910-00 | CLD | 950 | 36 | 4000K - 4091lm - CRI93 - 56° |
| 22085910-39 | CLD | 1050 | 39 | 3000K - 4189lm - CRI93 - 56° |
| 22085910-39 | CLD | 850 | 32 | 3000K - 3497lm - CRI93 - 56° |
| 22085910-39 | CLD | 900 | 33 | 3000K - 3693lm - CRI93 - 56° |
| 22085910-39 | CLD | 950 | 36 | 3000K - 3887lm - CRI93 - 56° |
| 22085912-00 | CLD | 800 | 45 | 4000K - 5296lm - CRI93 - 56° |
| 22085912-00 | CLD | 900 | 52 | 4000K - 5898lm - CRI93 - 56° |
| 22085912-00 | CLD | 950 | 55 | 4000K - 6200lm - CRI93 - 56° |
| 22085912-00 | CLD | 1050 | 57 | 4000K - 6395lm - CRI93 - 56° |
| 22085912-39 | CLD | 800 | 45 | 3000K - 5031lm - CRI93 - 56° |
| 22085912-39 | CLD | 900 | 52 | 3000K - 5603lm - CRI93 - 56° |
| 22085912-39 | CLD | 950 | 55 | 3000K - 5889lm - CRI93 - 56° |
| 22085912-39 | CLD | 1050 | 57 | 3000K - 6075lm - CRI93 - 56° |
Versions
| Code | Kg | Nominal Current | Lumen Output - K - CRI | Beam angle | TotW | Premer |
|---|---|---|---|---|---|---|
| 1.7 kg | 1050 mA | 4409 lm - 4000 K - 93 | 56 ° | 39 W | 200 mm | |
| 1.7 kg | 1050 mA | 4189 lm - 3000 K - 93 | 56 ° | 39 W | 200 mm | |
| 1.7 kg | 1050 mA | 6395 lm - 4000 K - 93 | 56 ° | 57 W | 200 mm | |
| 1.7 kg | 1050 mA | 6075 lm - 3000 K - 93 | 56 ° | 57 W | 200 mm | |
| 1.7 kg | 1050 mA | 4409 lm - 4000 K - 93 | 56 ° | 39 W | 200 mm | |
| 1.7 kg | 1050 mA | 4189 lm - 3000 K - 93 | 56 ° | 39 W | 200 mm | |
| 1.7 kg | 1050 mA | 6395 lm - 4000 K - 93 | 56 ° | 57 W | 200 mm | |
| 1.7 kg | 1050 mA | 6075 lm - 3000 K - 93 | 56 ° | 57 W | 200 mm |
Accessories
| Name | Description | |
|---|---|---|
| Набор EM Q |

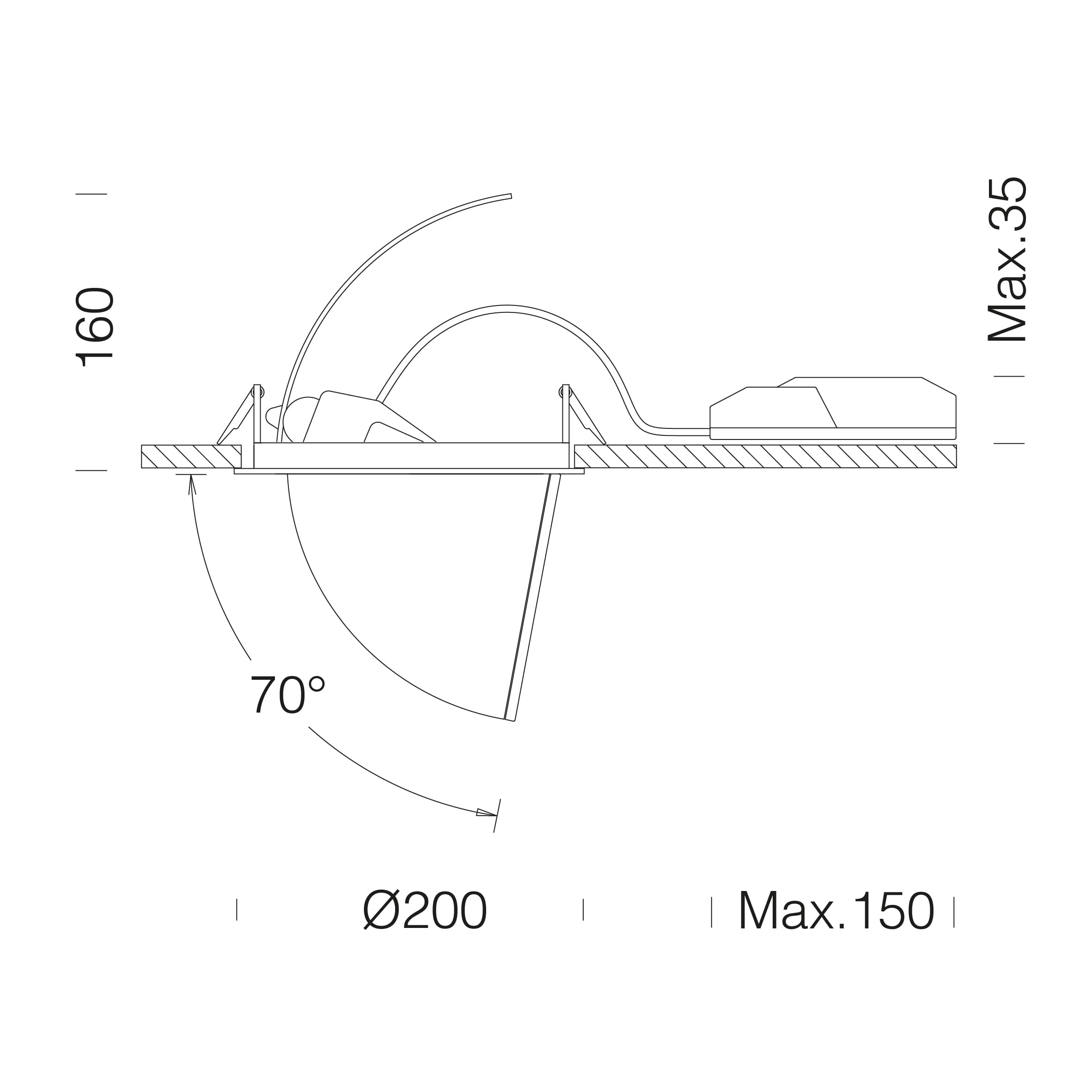

Dimensions
| Luminaire height | 160 mm |
| Diameter | 200 mm |
The reported luminous flux is the flux emitted by the light source with a tolerance of ± 10% compared to the indicated value. The W tot column indicates the total wattage absorbed by the system without exceeding 10% of the indicated value.
