Low glare 2 - CCT DIP SWITCH
Application usages
Description

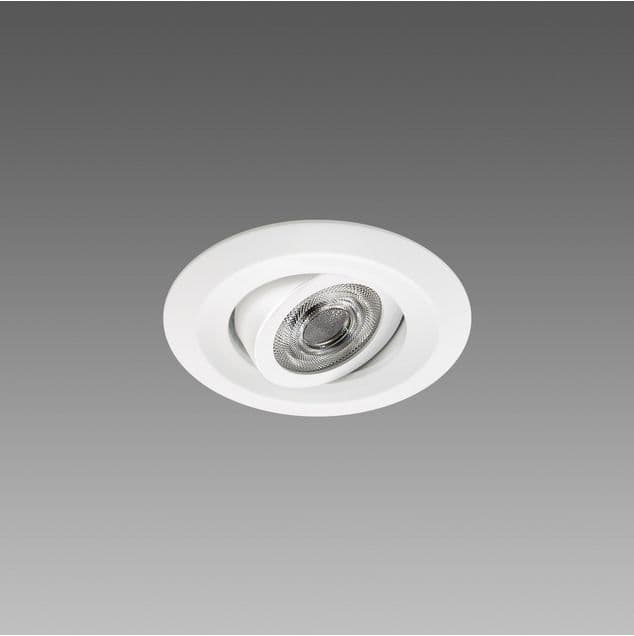

Low Glare represents the technological evolution of the traditional recessed spotlight and is available in two shapes: round and square. The main advantages of this product are high energy savings, great flexibility of use and superior lighting quality.With the latest LEDs, energy savings of up to 80% compared to older products, with a long lifetime and excellent luminous flux maintenance.The high quality of Low Glare spotlights is also guaranteed by specific colour temperatures and anti-glare shielded optics. A dimmable version is also available.An easy solution for upgrading old luminaires. Simple to install, easy to replace.
Code | LED | TotW | K - Lumen Output - CRI - ° |
---|---|---|---|
22066777-00 / 22066717-00 | 200 | 82700K - 666lm - CRI>90 - 38° | |
22066777-00 / 22066717-00 | 250 | 102700K - 833lm - CRI>90 - 38° | |
22066777-00 / 22066717-00 | 300 | 122700K - 961lm - CRI>90 - 38° | |
22066777-00 / 22066717-00 | 350 | 142700K - 1100lm - CRI>90 - 38° | |
22066777-00 / 22066717-00 | 200 | 83000K - 715lm - CRI>90 - 38° | |
22066777-00 / 22066717-00 | 250 | 103000K - 888lm - CRI>90 - 38° | |
22066777-00 / 22066717-00 | 300 | 123000K - 1037lm - CRI>90 - 38° | |
22066777-00 / 22066717-00 | 350 | 143000K - 1209lm - CRI>90 - 38° | |
22066777-00 / 22066717-00 | 200 | 84000K - 746lm - CRI>90 - 38° | |
22066777-00 / 22066717-00 | 250 | 104000K - 924lm - CRI>90 - 38° | |
22066777-00 / 22066717-00 | 300 | 124000K - 1073lm - CRI>90 - 38° | |
22066777-00 / 22066717-00 | 350 | 144000K - 1229lm - CRI>90 - 38° | |
Versions
Code | Kg | Lumen Output - K - CRI | Beam angle | TotW | Premer |
---|---|---|---|---|---|
0.3 kg | 990 lm - 3000 K - >90 | 38 ° | 10 W | 90 mm | |
0.3 kg | 990 lm - 3000 K - >90 | 38 ° | 10 W | 90 mm |
Accessories
Dimensions
Luminaire height | 58 mm |
Diameter | 90 mm |
The reported luminous flux is the flux emitted by the light source with a tolerance of ± 10% compared to the indicated value. The W tot column indicates the total wattage absorbed by the system without exceeding 10% of the indicated value.
