Micro Liset COVER - cylindrical Professional

Application usages

Description

Version with aluminium screen, ideal for reducing glare and creating striking lighting effects.

Versions

Kg	Lumen Output - K - CRI	TotW	Dolžina	Širina
0.6 kg	1501 lm - 3000 K - >80	13 W	57 mm	700 mm
0.6 kg	1501 lm - 3000 K - >80	13 W	57 mm	700 mm
0.6 kg	1606 lm - 4000 K - >80	13 W	57 mm	700 mm
0.6 kg	1606 lm - 4000 K - >80	13 W	57 mm	700 mm
0.8 kg	2252 lm - 3000 K - >80	19 W	57 mm	1000 mm
0.8 kg	2252 lm - 3000 K - >80	19 W	57 mm	1000 mm
0.8 kg	2410 lm - 4000 K - >80	19 W	57 mm	1000 mm
0.8 kg	2410 lm - 4000 K - >80	19 W	57 mm	1000 mm
0.9 kg	3002 lm - 3000 K - >80	25 W	57 mm	1300 mm
0.9 kg	3002 lm - 3000 K - >80	25 W	57 mm	1300 mm
0.9 kg	3212 lm - 4000 K - >80	25 W	57 mm	1300 mm
0.9 kg	3212 lm - 4000 K - >80	25 W	57 mm	1300 mm
1.1 kg	3754 lm - 3000 K - >80	31 W	57 mm	1600 mm
1.1 kg	3754 lm - 3000 K - >80	31 W	57 mm	1600 mm
1.1 kg	4017 lm - 4000 K - >80	31 W	57 mm	1600 mm
1.1 kg	4017 lm - 4000 K - >80	31 W	57 mm	1600 mm

Accessories

	Name	Description
	IP65 Box for LED - 700mA
	Driver IP67 LED - 24V

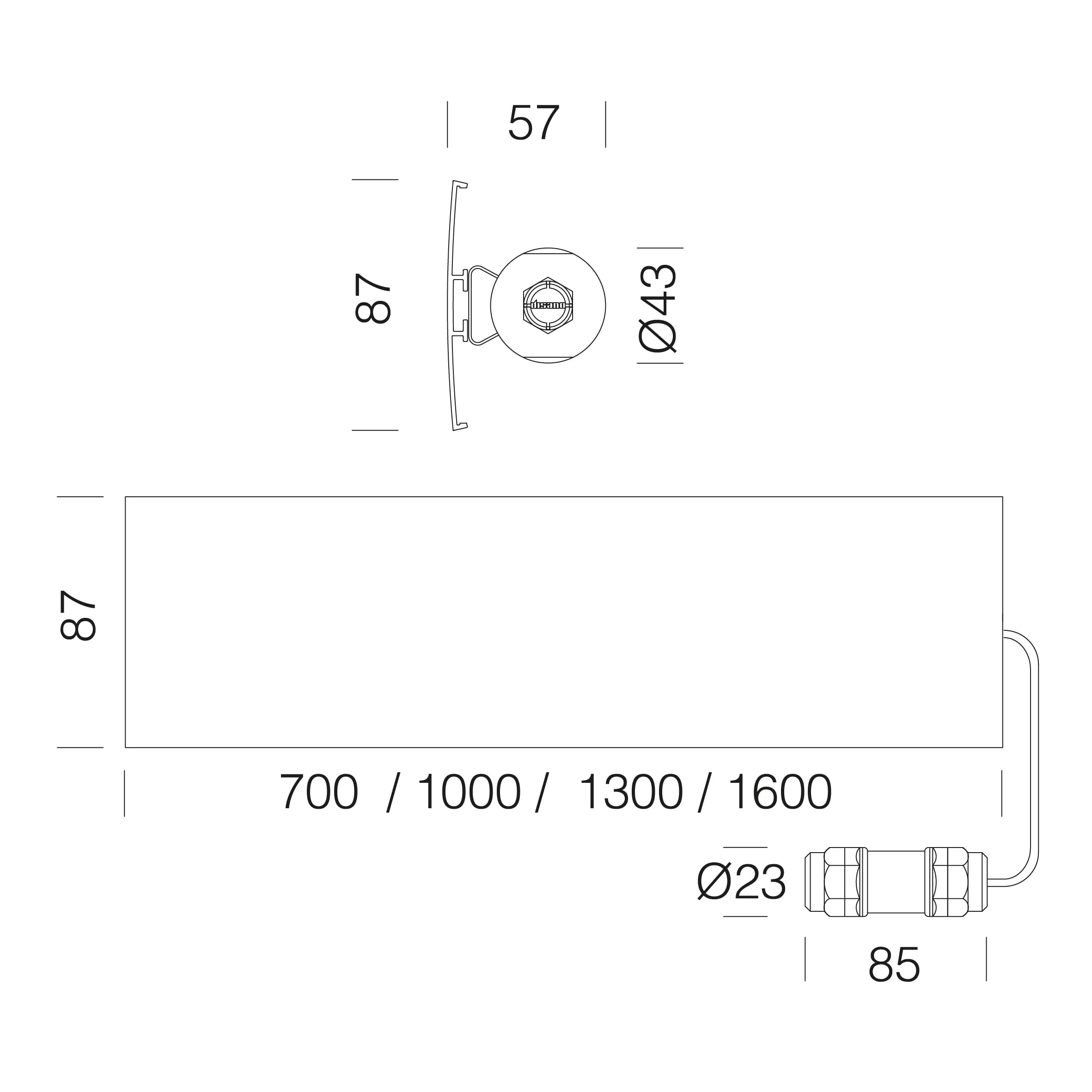

Dimensions

Luminaire length	57 mm
Luminaire height	87 mm

The reported luminous flux is the flux emitted by the light source with a tolerance of ± 10% compared to the indicated value. The W tot column indicates the total wattage absorbed by the system without exceeding 10% of the indicated value.
