1983 Micro Rodio - symmetric narrow beam
Application usages
Description

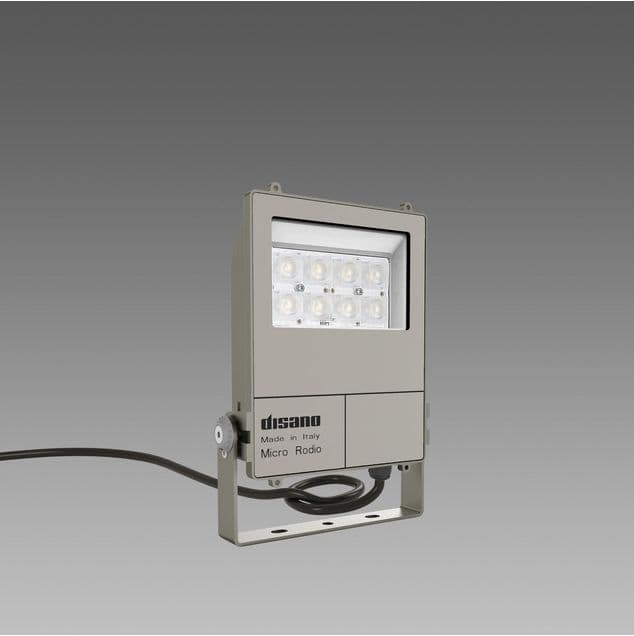

To meet the needs of those lighting projects where the size of the fixture makes the difference, Disano has created Micro Rodio, the floodlight that concentrates all the technology of the Rodio family into extremely compact dimensions. Also available with COB LED for a greater lighting quality, it stands out for a very long lamp life thanks to top quality materials and LED sources.
Versions
| Code | Kg | Lumen Output - K - CRI | TotW | Dolžina | Širina |
|---|---|---|---|---|---|
| 1.2 kg | 3097 lm - 4000 K - 80 | 28 W | 145 mm | 45 mm | |
| 1.2 kg | 2880 lm - 3000 K - 80 | 28 W | 145 mm | 45 mm | |
| 1.2 kg | 3097 lm - 4000 K - 80 | 28 W | 145 mm | 45 mm | |
| 1.2 kg | 2880 lm - 3000 K - 80 | 28 W | 145 mm | 45 mm | |
| 1.2 kg | 3097 lm - 4000 K - 80 | 28 W | 145 mm | 45 mm | |
| 1.2 kg | 2880 lm - 3000 K - 80 | 28 W | 145 mm | 45 mm |
Accessories
| Name | Description | |
|---|---|---|
| 339 Connector | ||
| 41 Adjustable arm |
Dimensions
| Luminaire length | 145 mm |
| Luminaire Width | 45 mm |
| Luminaire height | 227 mm |
The reported luminous flux is the flux emitted by the light source with a tolerance of ± 10% compared to the indicated value. The W tot column indicates the total wattage absorbed by the system without exceeding 10% of the indicated value.
