Disano

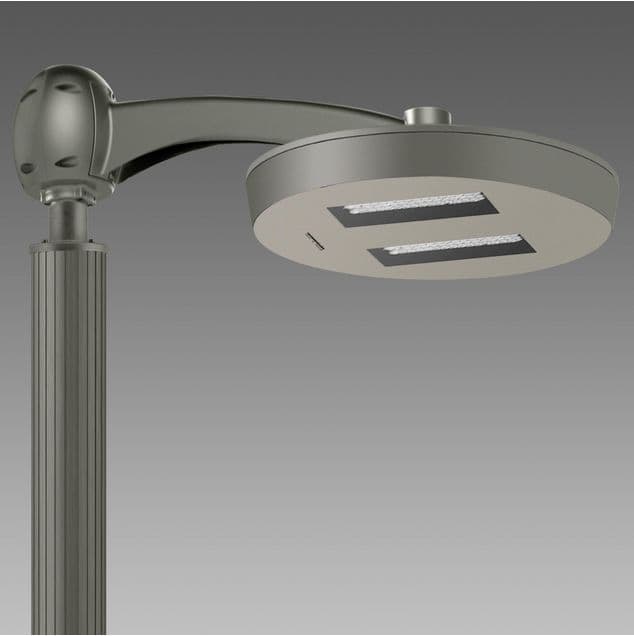

3329 Visconti 2.0 - grandi aree

Tipologia installazione

Testa palo e a frusta

Applicazioni d'uso

Esterno

An increasing number of towns and cities are using LEDs for their public lighting systems. This new technology meets the needs of an urban environment that aspires to be eco-friendly and 'smart'. The energy savings ensured by LEDs go hand in hand with the use of light control and management technologies that make the new streetlights the potential nodes of an online service network.Disano's street and urban lighting luminaires are born from the experience of a true sector leader and from its constant the search for innovative solutions.The VISCONTI LED range is now available in a revised design and comes with the new ADVANCE driver as standard. It is a driver that allows multiple possibilities to optimise consumption, adjust the lights to actual needs and have control over the infrastructure. Options include a choice of drive current (to achieve maximum light output when needed and reduce power whenever possible) or the virtual midnight feature, the programmable mechanism to reduce emissions at night, and remote monitoring systems via Zhaga or NEMA Sockets.VISCONTI LED is equipped with different optics for multiple urban routes – street, pedestrian and parks – and LED sources with 3000 and 4000K colour temperatures which offer the best performance in terms of light output and energy efficiency.

CodiceSigla cablaggioKgCorrente nominaleLumen Output - K - CRIWTotColoreDiametro
CLD8.3 kg700 mA5162 lm - 4000 K - 7534 W520 mmGrafite
CLD8.3 kg700 mA4905 lm - 3000 K - 7534 W520 mmGrafite
CLD8.3 kg700 mA10220 lm - 4000 K - 7568 W520 mmGrafite
CLD8.3 kg700 mA9709 lm - 3000 K - 7568 W520 mmGrafite
CLD8.3 kg700 mA15486 lm - 4000 K - 75102 W520 mmGrafite
CLD8.3 kg700 mA14715 lm - 3000 K - 75102 W520 mmGrafite
Altezza87 mm
Diametro520 mm

Il flusso luminoso riportato indica il flusso uscente dall’apparecchio con una tolleranza di ± 10% rispetto al valore indicato. I W tot sono la potenza totale assorbita dal sistema e non supera il 10% del valore indicato.
