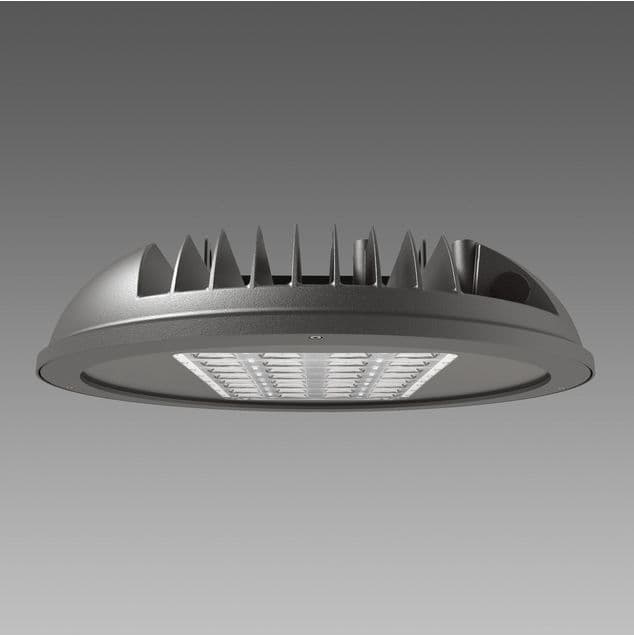

1789 Astro ATEX - UGR<25 - wide beam
Installation type
Pendant
Application usages
Description
Fixture for use in explosive atmospheres due to the presence of dust and gas with an increased level of protection that is not a source of ignition during conditions of normal operation and that may have additional protection measures to ensure that the source of ignition stays inactive in case of regular and expected failures.Protection against explosions: 3G Ex nA opis IIC T4 IP66 Gc - II 3D Ex tc IIIC T135°C IP66 Dc Admitted danger zone: Zone2, Zone 22Admitted ambient temperature: -20°C ÷ +40°CDegree of protection: IP66Installation: suspensionMechanical resistance of the housing: IK08Reference standards: EN 60079-0; EN 60079-15; EN 60079-31; EN 60079-28
Versions
| Code | Wiring name | Kg | Lumen Output - K - CRI | TotW | Colour |
|---|---|---|---|---|---|
| CLD | 11.8 kg | 22298 lm - 4000 K - 80 | 202 W | Grey | |
| CLD | 13.5 kg | 29730 lm - 4000 K - 80 | 271 W | Grey | |
| CLD | 13.5 kg | 22298 lm - 4000 K - 80 | 202 W | Graphite | |
| CLD | 13.5 kg | 29730 lm - 4000 K - 80 | 271 W | Graphite | |
| CLD | 11.5 kg | 14865 lm - 4000 K - 80 | 137 W | Grey | |
| CLD | 11.9 kg | 14865 lm - 4000 K - 80 | 137 W | Graphite |
Dimensions
The reported luminous flux is the flux emitted by the light source with a tolerance of ± 10% compared to the indicated value. The W tot column indicates the total wattage absorbed by the system without exceeding 10% of the indicated value.
