Disano

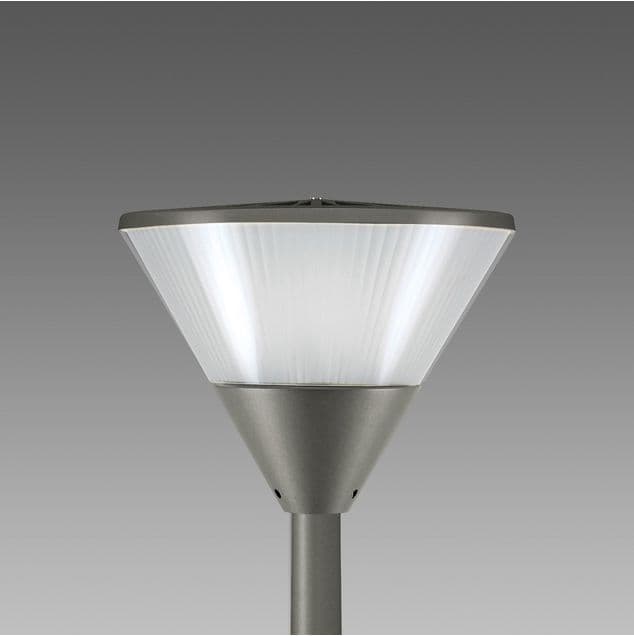

1205 Polar

Installation type

Mast-top

Application usages

Outdoor

One of Disano's historic urban amentities lighting products is now available with LEDs and joins the family of products for lighting up parks and gardens where high energy savings and excellent light quality are needed. Equipped with the latest generation of LED modules

CodeWiring nameKgNominal CurrentLumen Output - K - CRITotWColour
CLD5.6 kg500 mA9188 lm - 4000 K - >7073 WGrey
CLD5.6 kg500 mA8736 lm - 3000 K - >7073 WGrey
CLD5.6 kg500 mA9188 lm - 4000 K - >7073 WGraphite
CLD5.6 kg500 mA8736 lm - 3000 K - >7073 WGraphite
Luminaire height428 mm
Diameter503 mm

The reported luminous flux is the flux emitted by the light source with a tolerance of ± 10% compared to the indicated value. The W tot column indicates the total wattage absorbed by the system without exceeding 10% of the indicated value.
