1836 Sicura - FS symmetric LED
Installation type
Recessed
Application usages
Indoor and outdoor
Description
Sicura is a linear lighting fixture with an aluminum housing made to enhance architectural lighting designs, providing uniform light and high performance. It is ideal for outdoor and indoor applications, and has a high degree of protection IP67. Available in several versions with a wide range of optics.
Versions
| Code | Wiring name | Kg | Lumen Output - K - CRI | Beam angle | TotW | Colour |
|---|---|---|---|---|---|---|
| CLD | 4.3 kg | 2952 lm - 4000 K - ≥80 | 30 ° | 22 W | Grey | |
| CLD | 4.3 kg | 2745 lm - 3000 K - ≥80 | 30 ° | 22 W | Grey | |
| CLD | 8.3 kg | 5905 lm - 4000 K - ≥80 | 30 ° | 43 W | Grey | |
| CLD | 8.3 kg | 5492 lm - 3000 K - ≥80 | 30 ° | 43 W | Grey | |
| CLD | 10.2 kg | 7381 lm - 4000 K - ≥80 | 30 ° | 54 W | Grey | |
| CLD | 10.2 kg | 6864 lm - 3000 K - ≥80 | 30 ° | 54 W | Grey |
Accessories
| Name | Description | |
|---|---|---|
| 905 Bracket for false ceiling |

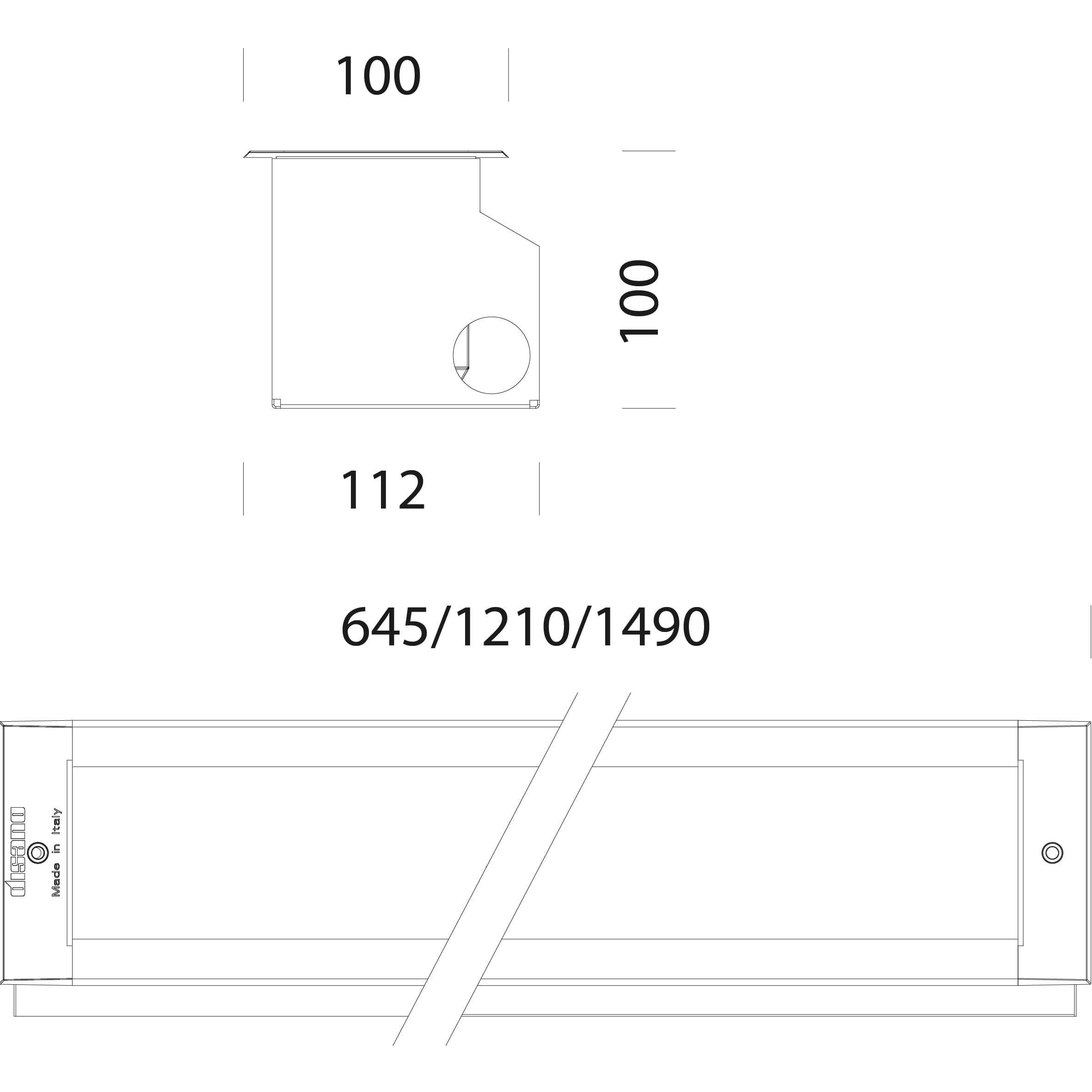

Dimensions
The reported luminous flux is the flux emitted by the light source with a tolerance of ± 10% compared to the indicated value. The W tot column indicates the total wattage absorbed by the system without exceeding 10% of the indicated value.
