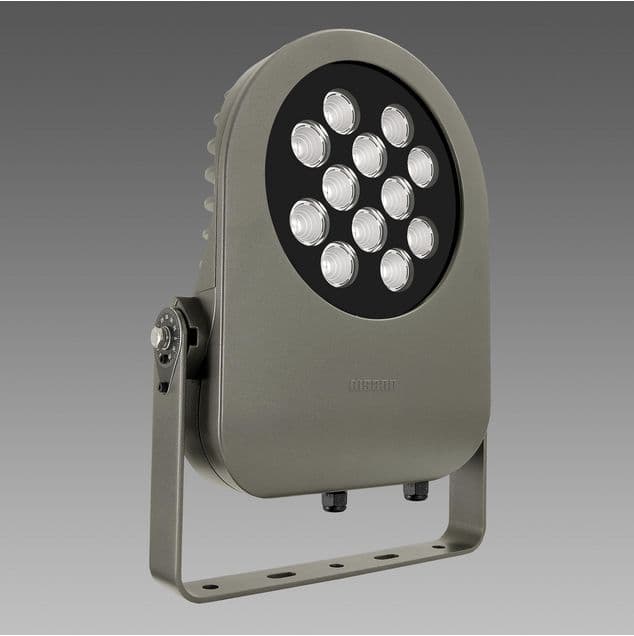

1735 Cripto big - RGBW DMX-RDM
Installation type
Bracket
Application usages
Indoor and outdoor
Description
Red= 798lm - Green= 2085lm - Blue= 334lm - White= 1625lm (3000K) - 10° - max. 100W
Versions
| Code | Wiring name | Kg | Beam angle | TotW | Colour | Length | Width |
|---|---|---|---|---|---|---|---|
| CLD | 7.7 kg | 10 ° | 100 W | 500 mm | 360 mm | Graphite |
Accessories
| Name | Description | |
|---|---|---|
| 625 Conveyor big |

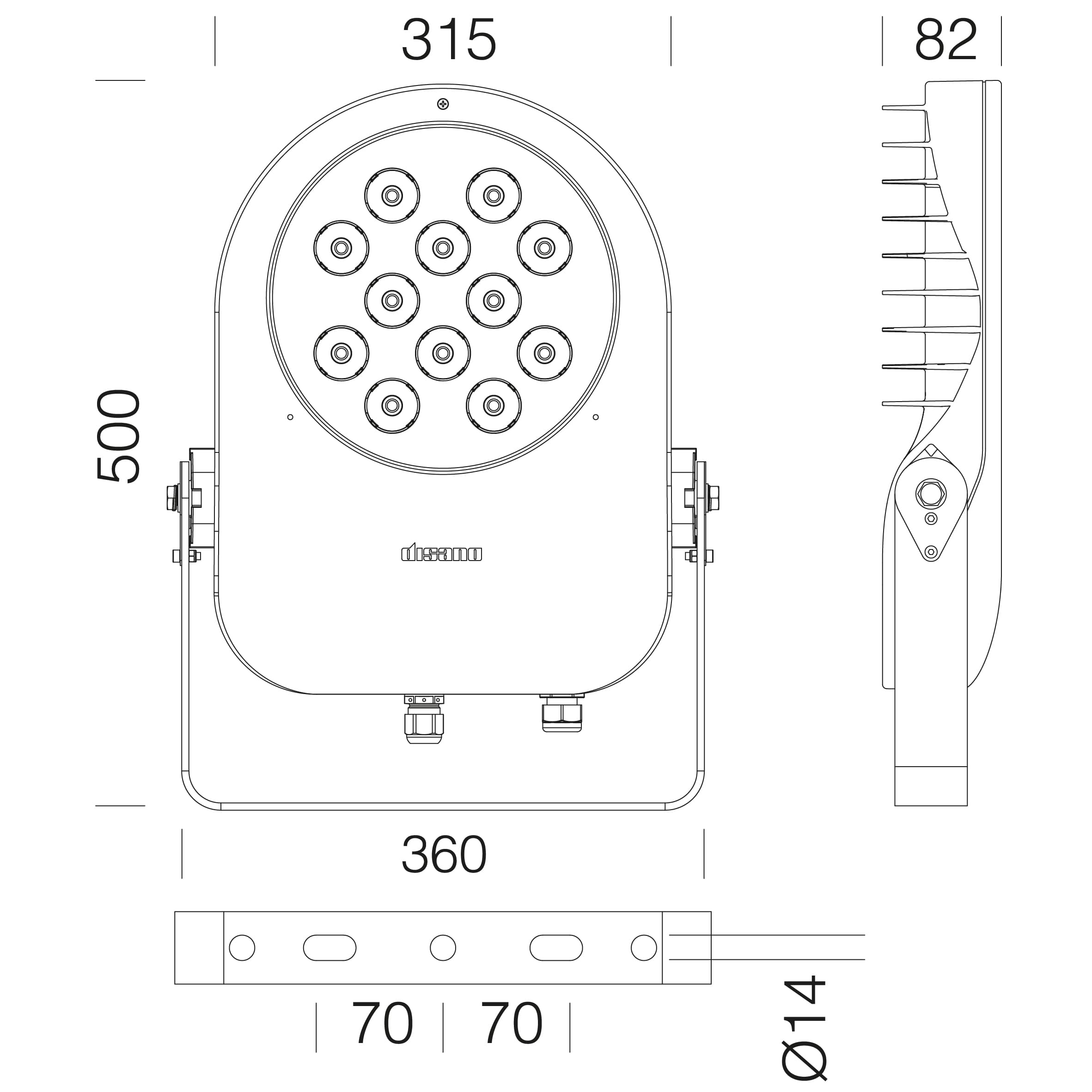

Dimensions
| Luminaire length | 500 mm |
| Luminaire Width | 360 mm |
| Luminaire height | 82 mm |
The reported luminous flux is the flux emitted by the light source with a tolerance of ± 10% compared to the indicated value. The W tot column indicates the total wattage absorbed by the system without exceeding 10% of the indicated value.
