745 Oblò J 2.0 - ON OFF
Installation type
Ceiling
Application usages
Description

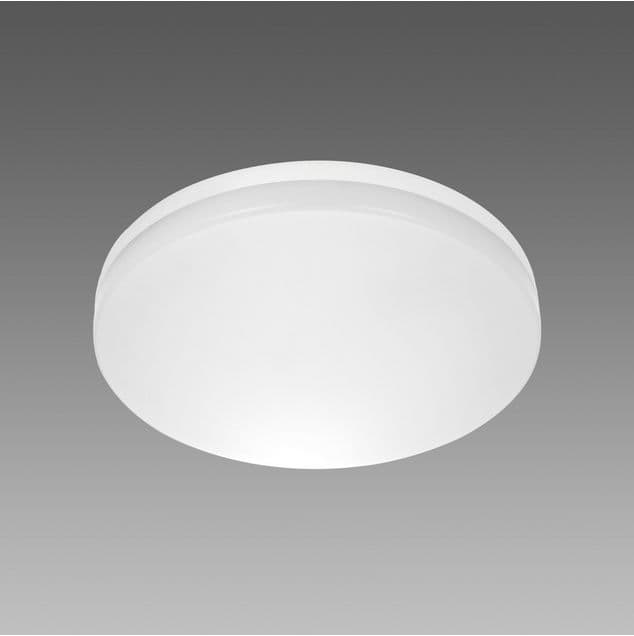

Oblò J 2.0 is Disano’s new easy-to-install wall/ceiling light fixture featuring an extremely resistant self-extinguishing polycarbonate housing (IK07) with a greater degree of protection (IP65) and double insulation. It comprises high-efficiency LED sources that ensure notable energy savings. Its minimalist and compact design makes it suitable for any outdoor application, especially balconies, porches, and terraces, as well as for indoor use, such as condominium staircases, landings, and common areas. This ceiling fixture has colour temperatures of 3000K and 4000K and a high colour rendering index (CRI≥80), guaranteeing effective, pleasant, and safe lighting.
Versions
Code | Wiring name | Kg | Lumen Output - K - CRI | TotW | Colour |
---|---|---|---|---|---|
CLD | 1 kg | 2026 lm - 4000 K - ≥80 | 16 W | White | |
CLD | 1 kg | 1863 lm - 3000 K - ≥80 | 16 W | White | |
CLD | 1 kg | 2898 lm - 4000 K - ≥80 | 21 W | White | |
CLD | 1 kg | 2695 lm - 3000 K - ≥80 | 21 W | White |
Dimensions
The reported luminous flux is the flux emitted by the light source with a tolerance of ± 10% compared to the indicated value. The W tot column indicates the total wattage absorbed by the system without exceeding 10% of the indicated value.
