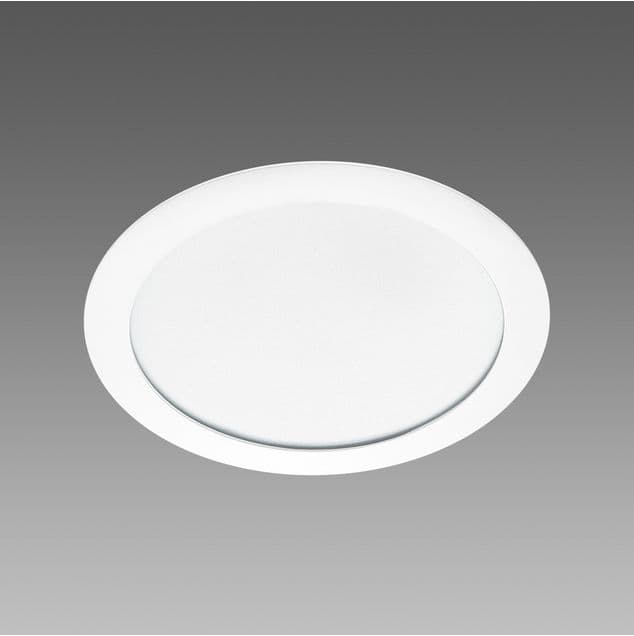

Slim Lex 2.0 B - CCT SWITCH
Installation type
Recessed
Application usages
Description
SlimLex, a new and exclusive range of round and square recessed and surface mounted spotlights fitting latest-generation LEDs.This series was created to meet the increasingly demanding requirements imposed by modern interior lighting designs.Lighting must be effective and flexible to best define environments according to the most varied needs; it must have a high impact, with low operating costs and last over time. It must also produce special lighting effects, such as accent lighting and ambient lighting.
Code | Wiring | TotW | K - Lumen Output – CRI |
---|---|---|---|
22159515-00 | CLD | 18 | 3000K - 1370lm- CRI>80 |
22159515-00 | CLD | 18 | 4000K – 1440lm- CRI>80 |
22159515-00 | CLD | 18 | 6000K - 1440lm- CRI>80 |
Versions
Code | Wiring name | Kg | Lumen Output - K - CRI | TotW | Colour | Diameter |
---|---|---|---|---|---|---|
CLD | 0.4 kg | 1673 lm - 4000 K - >80 | 18 W | 224 mm | White |
Accessories
Name | Description | |
---|---|---|
Safety cord |
Dimensions
Luminaire height | 20 mm |
Diameter | 224 mm |
The reported luminous flux is the flux emitted by the light source with a tolerance of ± 10% compared to the indicated value. The W tot column indicates the total wattage absorbed by the system without exceeding 10% of the indicated value.
