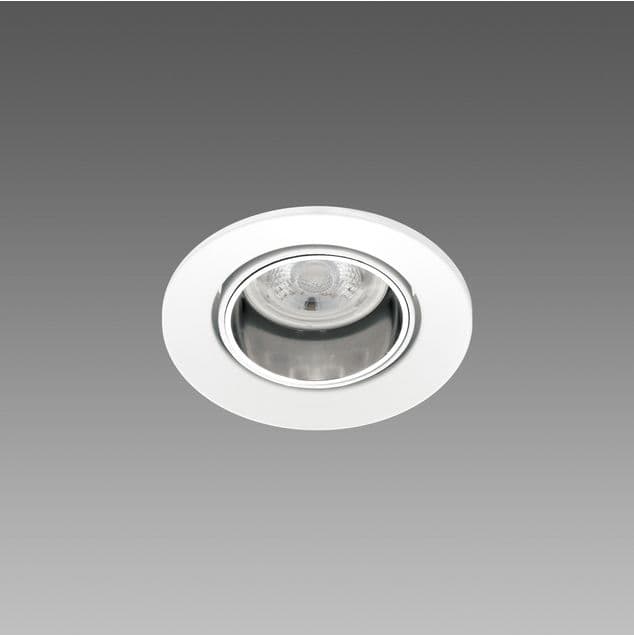

Swing LED
Installation type
Recessed
Application usages
Indoor
Description
Swing LED
Versions
| Code | Wiring name | Kg | Lumen Output - K - CRI | Beam angle | TotW | Colour | Diameter |
|---|---|---|---|---|---|---|---|
| CLD | 0.2 kg | 600 lm - 3000 K - 80 | 38 ° | 6 W | 88 mm | White | |
| CLD-D-IGBT | 0.2 kg | 655 lm - 3000 K - 80 | 38 ° | 7 W | 88 mm | White | |
| CLD | 0.2 kg | 800 lm - 3000 K - 80 | 38 ° | 9 W | 88 mm | White | |
| CLD | 0.2 kg | 600 lm - 4000 K - 80 | 38 ° | 6 W | 88 mm | White | |
| CLD | 0.2 kg | 700 lm - 4000 K - 80 | 38 ° | 9 W | 88 mm | White | |
| CLD-D-IGBT | 0.2 kg | 655 lm - 4000 K - 80 | 38 ° | 7 W | 88 mm | White | |
| CLD | 0.2 kg | 600 lm - 3000 K - 80 | 38 ° | 6 W | 88 mm | White | |
| CLD-D-IGBT | 0.2 kg | 655 lm - 3000 K - 80 | 38 ° | 7 W | 88 mm | White | |
| CLD | 0.2 kg | 800 lm - 3000 K - 80 | 38 ° | 9 W | 88 mm | White | |
| CLD | 0.2 kg | 600 lm - 4000 K - 80 | 38 ° | 6 W | 88 mm | White | |
| CLD | 0.2 kg | 700 lm - 4000 K - 80 | 38 ° | 9 W | 88 mm | White | |
| CLD-D-IGBT | 0.2 kg | 655 lm - 4000 K - 80 | 38 ° | 7 W | 88 mm | White |
Accessories
| Name | Description | |
|---|---|---|
| Safety cord |

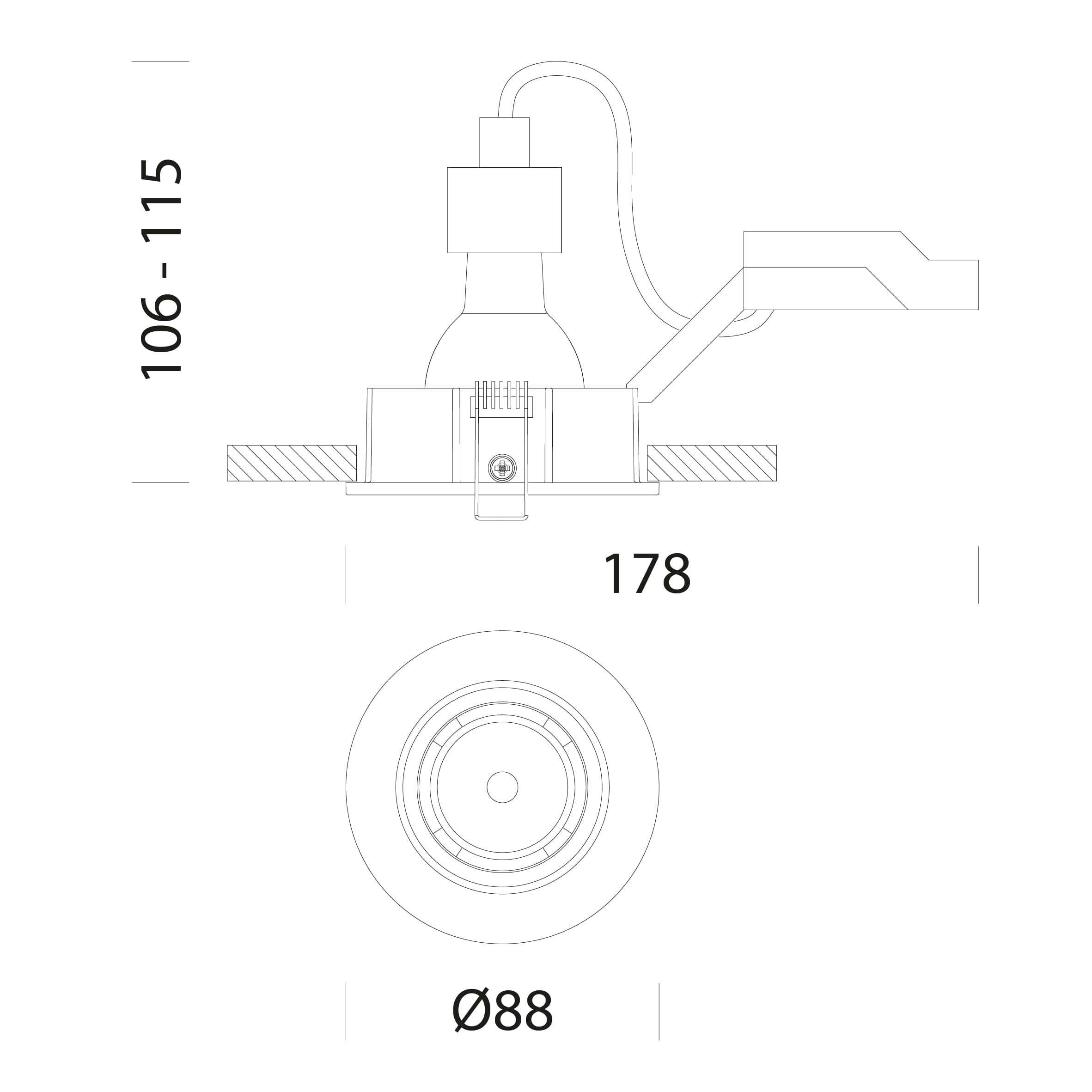

Dimensions
| Diameter | 88 mm |
The reported luminous flux is the flux emitted by the light source with a tolerance of ± 10% compared to the indicated value. The W tot column indicates the total wattage absorbed by the system without exceeding 10% of the indicated value.
