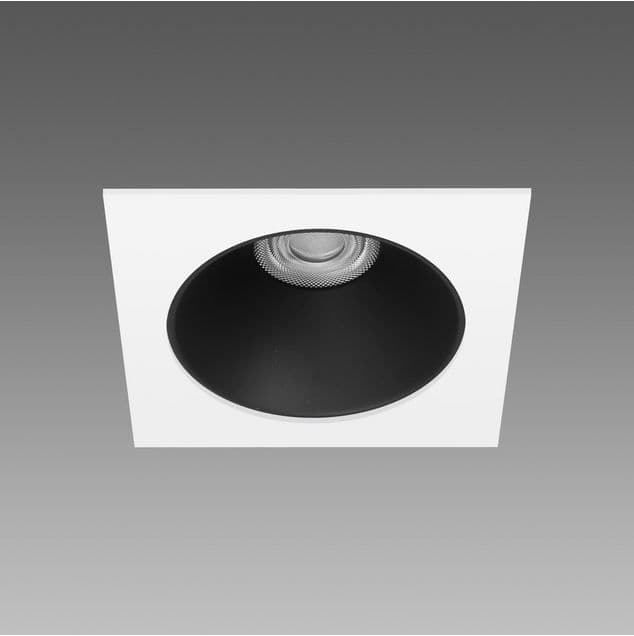

Spark 1 - Q120 - CCT DIP SWITCH

Installation type

Recessed

Application usages

Indoor

This range includes both round and square recessed spotlights, available in fixed and adjustable versions. It is perfect for replacing existing spotlights and represents the technological evolution in recessed lighting. The main advantages of this latest-generation product are energy savings, exceptional flexibility of use, and significantly higher quality lighting. These spotlights feature the CCT switch technology, allowing colour changes, and a DIP switch with a single driver, offering various currents and, consequently, multiple luminous fluxes and wattages. Thanks to the innovative driver with DIP switch, achieving the perfect light for any lighting project is simple. With a single code, it provides installers with a wide range of choices readily available.By selecting the LED driving current according to specific needs, the appropriate power for any design condition is guaranteed. Therefore, choosing a lower current will increase the efficiency and improve energy savings, while a higher current will provide brighter light and make it possible to reduce the number of luminaires needed.

WiringLED TotWK - Lumen Output - CRI – Degrees
CLD20082700K - 666m - CRI>90 – 38°
CLD250102700K - 833lm - CRI>90 – 38°
CLD300122700K - 961lm - CRI>90 – 38°
CLD350142700K - 1100lm - CRI>90 – 38°
CLD20083000K - 715 - CRI>90 – 38°
CLD250103000K - 888lm - CRI>90 – 38°
CLD300123000K - 1037lm - CRI>90 – 38°
CLD350143000K - 1209lm - CRI>90 – 38°
CLD20084000K - 746m - CRI>90 – 38°
CLD250104000K - 924lm - CRI>90 – 38°
CLD300124000K – 1073lm - CRI>90 – 38°
CLD350144000K - 1229lm - CRI>90 – 38°
CodeWiring nameKgNominal CurrentLumen Output - K - CRIBeam angleTotWColourLengthWidth
CLD0.4 kg350 mA1229 lm - 4000 K - >9038 °14 W86 mm120 mmBlack

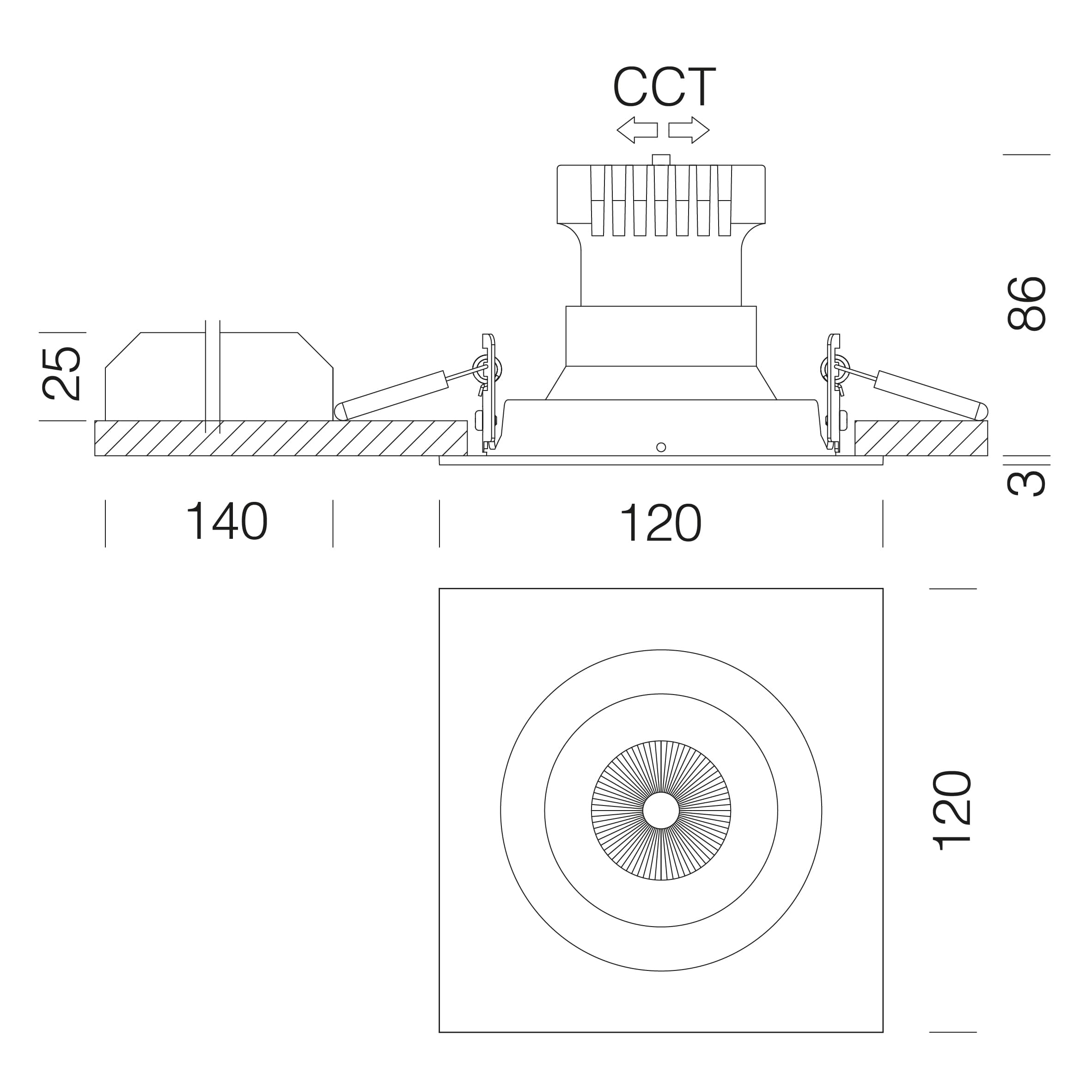

Luminaire length86 mm
Luminaire Width120 mm
Luminaire height120 mm

The reported luminous flux is the flux emitted by the light source with a tolerance of ± 10% compared to the indicated value. The W tot column indicates the total wattage absorbed by the system without exceeding 10% of the indicated value.
