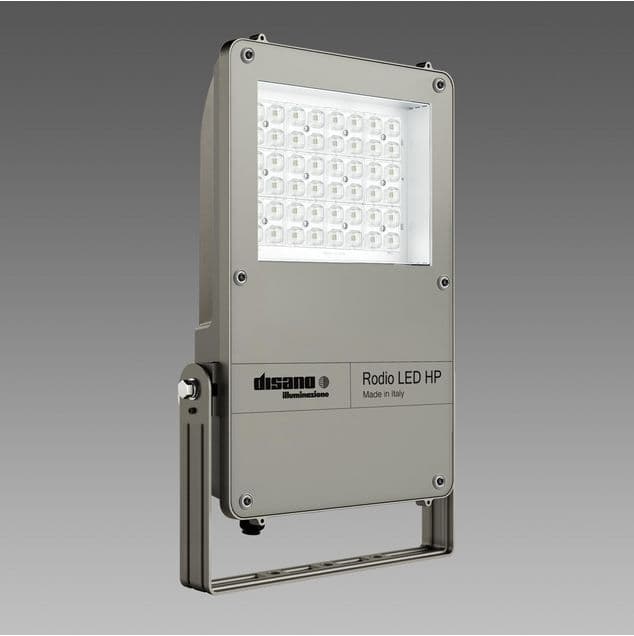

1891 Rodio HE - symmetric wide beam
Installation type
Bracket
Application usages
Description
Many different designs, with different wattages and optics for a result that is always of the highest quality. These luminaires are ideal for illuminating façades, street, sports facilities, residential areas and in any outdoor application.The Rodio family comprises several versions, with asymmetric, narrow-beam and wide-beam optics, also available in wide beam and street curve versions, and Virtual Midnight option. Equipped with LEDs, these luminaires offer perfect glare-free light control. You can choose versions with lenses or with COB LEDs for better lighting performance. All models feature high light quality, colour temperatures of 3000 or 4000K and excellent colour rendering. Also available in Amber colour versions.
Versions
| Code | Wiring name | Kg | Lumen Output - K - CRI | TotW | Colour |
|---|---|---|---|---|---|
| CLD | 9 kg | 18898 lm - 4000 K - 80 | 102 W | Graphite | |
| CLD | 9 kg | 17575 lm - 3000 K - 80 | 102 W | Graphite | |
| CLD | 9 kg | 27187 lm - 4000 K - 80 | 158 W | Graphite | |
| CLD | 9 kg | 25284 lm - 3000 K - 80 | 158 W | Graphite |
Accessories
Dimensions
| Luminaire length | 568 mm |
| Luminaire Width | 333 mm |
| Luminaire height | 90 mm |
The reported luminous flux is the flux emitted by the light source with a tolerance of ± 10% compared to the indicated value. The W tot column indicates the total wattage absorbed by the system without exceeding 10% of the indicated value.
