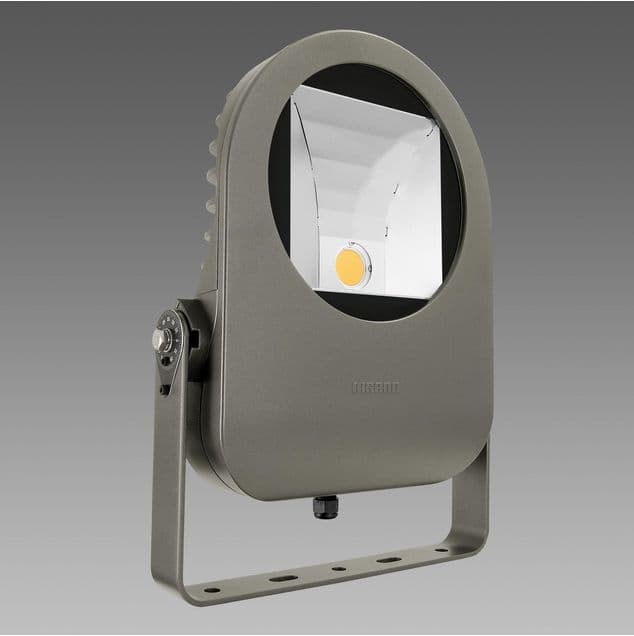

1727 Cripto COB big - asymmetric
Installation type
Bracket
Application usages
Description
Disano presents a lighting fixture, designed as a possible retrofit for more classic models.The excellent performance of this luminaire in terms of energy saving and luminous efficiency is accompanied by a long lifespan, with IP66-rated materials for outdoor installations.The most advanced technology and design are used to reduce consumption and address the increasing need to replace obsolete equipment and save energy.
Versions
| Code | Wiring name | Kg | Lumen Output - K - CRI | TotW | Colour | Length | Width |
|---|---|---|---|---|---|---|---|
| CLD | 6 kg | 15528 lm - 4000 K - | 129 W | 500 mm | 360 mm | Graphite | |
| CLD | 6 kg | 14063 lm - 3000 K - | 129 W | 500 mm | 360 mm | Graphite | |
| CLD | 6 kg | 14266 lm - 2200 K - amber | 127 W | 500 mm | 360 mm | Graphite | |
| CLD | 6 kg | 15528 lm - 4000 K - | 129 W | 500 mm | 360 mm | Grey | |
| CLD | 6 kg | 14063 lm - 3000 K - | 129 W | 500 mm | 360 mm | Grey | |
| CLD | 6 kg | 14266 lm - 2200 K - amber | 127 W | 500 mm | 360 mm | Grey |
Accessories
| Name | Description | |
|---|---|---|
| 625 convogliatore big |

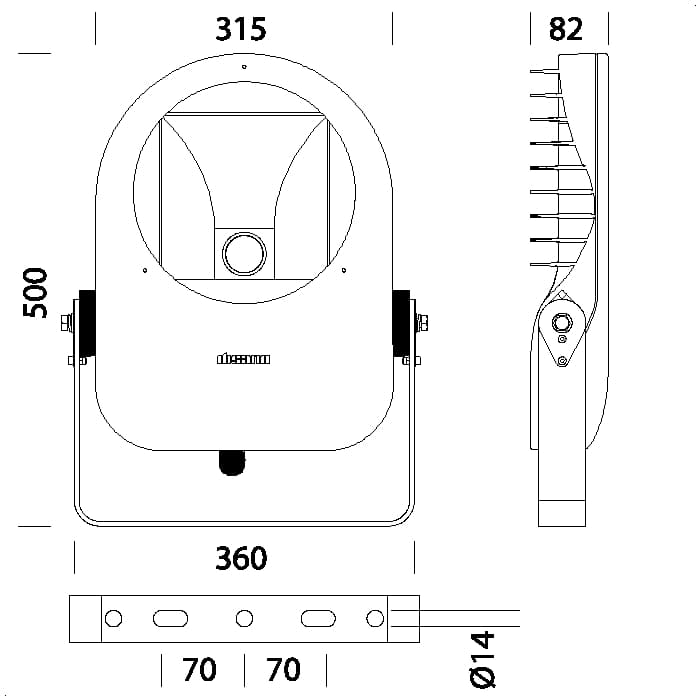

Dimensions
| Luminaire length | 500 mm |
| Luminaire Width | 360 mm |
| Luminaire height | 82 mm |
The reported luminous flux is the flux emitted by the light source with a tolerance of ± 10% compared to the indicated value. The W tot column indicates the total wattage absorbed by the system without exceeding 10% of the indicated value.
