Marte 4 - CCT DIP SWITCH
Installation type
Recessed
Application usages
Indoor
Description

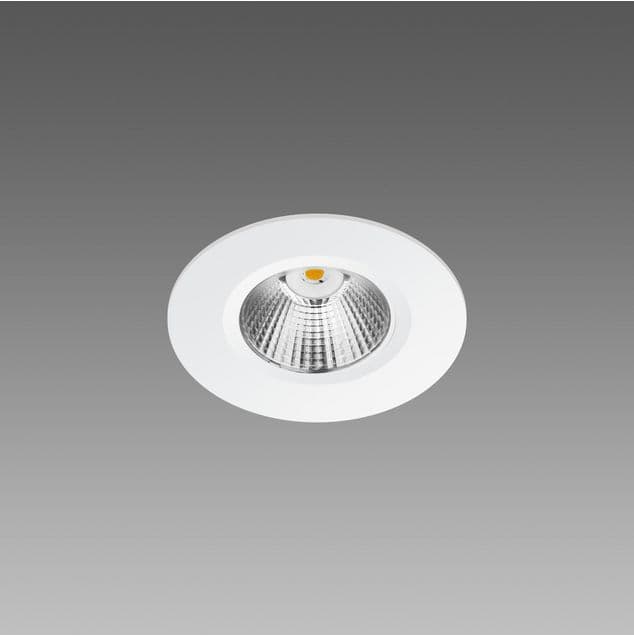

Marte is a new range of small, fixed and adjustable, recessed LED spotlights, most suitable for installation in confined spaces, such as false ceilings, furniture and display cases. Their LED sources allow considerable energy savings and excellent quality light emission.
| Wiring | LED | TotW | K - Lumen Output - CRI – Degrees |
|---|---|---|---|
| CLD | 90 | 4 | 2700K - 306m – CRI92 – 40° |
| CLD | 140 | 6 | 2700K - 468lm – CRI92 – 40° |
| CLD | 190 | 7 | 2700K – 612lm – CRI92 – 40° |
| CLD | 240 | 9 | 2700K - 756lm – CRI92 – 40° |
| CLD | 90 | 4 | 3000K - 333m – CRI92 – 40° |
| CLD | 140 | 6 | 3000K - 504lm – CRI92 – 40° |
| CLD | 190 | 7 | 3000K – 675lm – CRI92 – 40° |
| CLD | 240 | 9 | 3000K – 846lm – CRI92 – 40° |
| CLD | 90 | 4 | 4000K - 351m – CRI92 – 40° |
| CLD | 140 | 6 | 4000K - 522lm – CRI92 – 40° |
| CLD | 190 | 7 | 4000K – 702lm – CRI92 – 40° |
| CLD | 240 | 9 | 4000K - 873lm – CRI92 – 40° |
Versions
| Code | Wiring name | Kg | Nominal Current | Lumen Output - K - CRI | TotW | Colour | Diameter |
|---|---|---|---|---|---|---|---|
| CLD | 0.3 kg | 140 mA | 504 lm - 3000 K - 92 | 6 W | 85 mm | White |
Accessories
| Name | Description | |
|---|---|---|
| Safety cord |

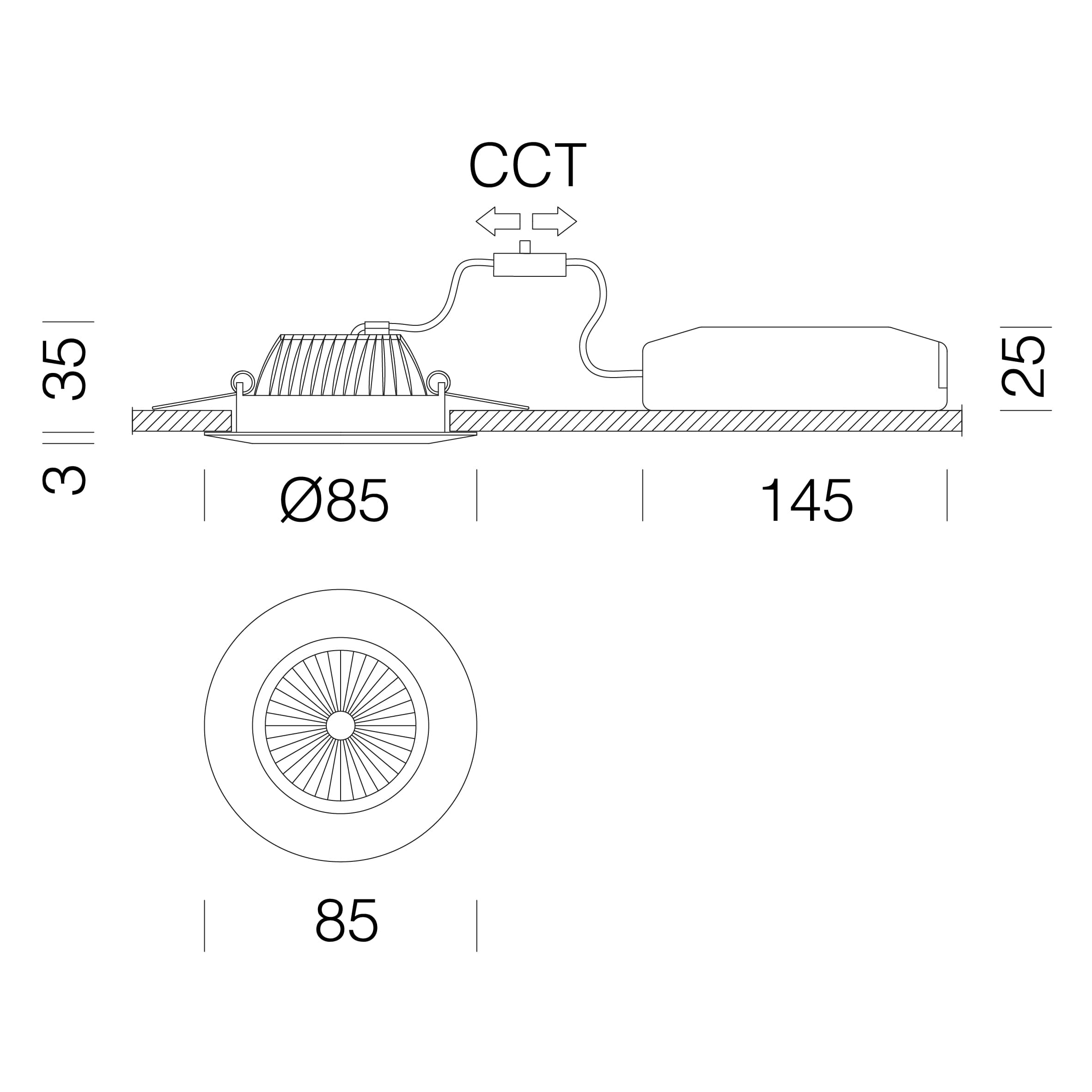

Dimensions
| Luminaire height | 35 mm |
| Diameter | 85 mm |
The reported luminous flux is the flux emitted by the light source with a tolerance of ± 10% compared to the indicated value. The W tot column indicates the total wattage absorbed by the system without exceeding 10% of the indicated value.
