3479 Mini Giovi T4 - large areas
Installation type
Mast-top and hockey stick
Application usages
Outdoor
Description

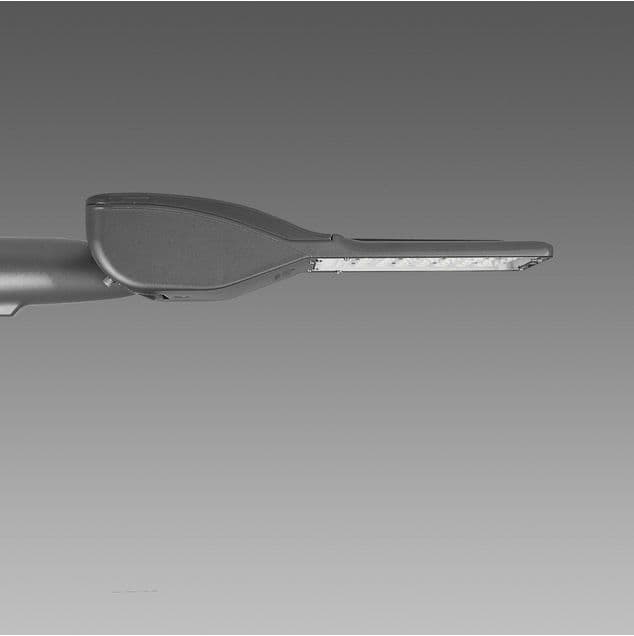

Mini Giovi represents the latest generation of LED street lamps designed to fit the new light sources and the most advanced lighting control and management systems.Its housing in die-cast aluminium offers very little resistance to wind with its cooling fins specifically studied to allow optimal heat dissipation and efficient LED operation.
Versions
| Code | Kg | Nominal Current | Lumen Output - K - CRI | TotW | Colour |
|---|---|---|---|---|---|
| 5.965 kg | 700 mA | 5257 lm - 4000 K - 70 | 33 W | Graphite | |
| 7.5 kg | 700 mA | 4993 lm - 3000 K - 70 | 33 W | Graphite | |
| 6.085 kg | 700 mA | 10512 lm - 4000 K - 70 | 67 W | Graphite | |
| 6.385 kg | 700 mA | 9987 lm - 3000 K - 70 | 67 W | Graphite | |
| 6.565 kg | 700 mA | 15769 lm - 4000 K - 70 | 100 W | Graphite | |
| 6.505 kg | 700 mA | 13027 lm - 3000 K - 70 | 100 W | Graphite | |
| 7.5 kg | 530 mA | 4153 lm - 4000 K - 70 | 25 W | Graphite | |
| 7.5 kg | 530 mA | 3944 lm - 3000 K - 70 | 25 W | Graphite | |
| 5.905 kg | 530 mA | 8303 lm - 4000 K - 70 | 50 W | Graphite | |
| 7.5 kg | 530 mA | 7888 lm - 3000 K - 70 | 50 W | Graphite | |
| 6.08 kg | 530 mA | 12456 lm - 4000 K - 70 | 76 W | Graphite | |
| 6.26 kg | 530 mA | 11834 lm - 3000 K - 70 | 76 W | Graphite | |
| 6.105 kg | 350 mA | 2789 lm - 4000 K - 70 | 16 W | Graphite | |
| 5.86 kg | 350 mA | 2648 lm - 3000 K - 70 | 16 W | Graphite | |
| 5.865 kg | 350 mA | 5576 lm - 4000 K - 70 | 33 W | Graphite | |
| 7.5 kg | 350 mA | 5298 lm - 3000 K - 70 | 33 W | Graphite | |
| 7.5 kg | 350 mA | 8365 lm - 4000 K - 70 | 50 W | Graphite | |
| 7.5 kg | 350 mA | 7948 lm - 3000 K - 70 | 50 W | Graphite |
Accessories
Dimensions
| Luminaire length | 558 mm |
| Luminaire Width | 293 mm |
| Luminaire height | 115 mm |
The reported luminous flux is the flux emitted by the light source with a tolerance of ± 10% compared to the indicated value. The W tot column indicates the total wattage absorbed by the system without exceeding 10% of the indicated value.
