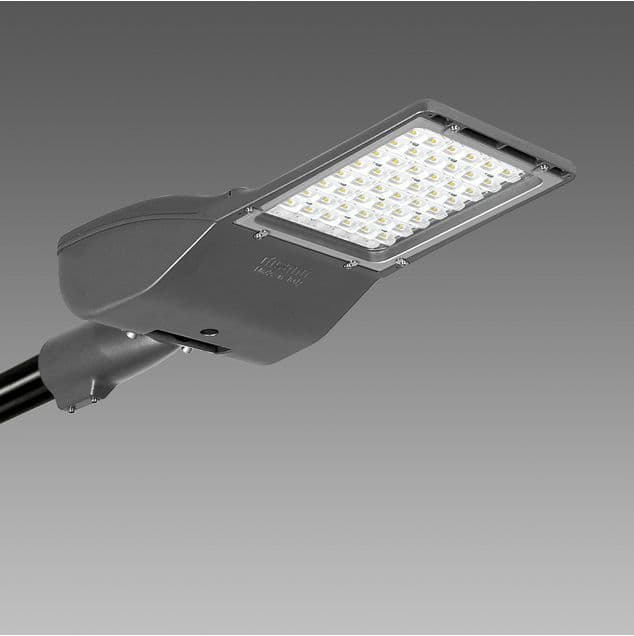

3476 Mini Giovi W2 - street

Installation type

Mast-top and hockey stick

Application usages

Outdoor

Description

Mini Giovi represents the latest generation of LED street lamps designed to fit the new light sources and the most advanced lighting control and management systems.Its housing in die-cast aluminium offers very little resistance to wind with its cooling fins specifically studied to allow optimal heat dissipation and efficient LED operation.

Versions

Wiring name	Kg	Nominal Current	Lumen Output - K - CRI	TotW	Colour	Length	Width
CLD	5.9 kg	700 mA	5223 lm - 4000 K - 70	33 W	558 mm	293 mm	Anthracite
CLD	5.9 kg	700 mA	4961 lm - 3000 K - 70	33 W	558 mm	293 mm	Anthracite
CLD	5.9 kg	700 mA	10448 lm - 4000 K - 70	67 W	558 mm	293 mm	Anthracite
CLD	5.9 kg	700 mA	9925 lm - 3000 K - 70	67 W	558 mm	293 mm	Anthracite
CLD	5.9 kg	700 mA	15674 lm - 4000 K - 70	100 W	558 mm	293 mm	Anthracite
CLD	5.9 kg	700 mA	14893 lm - 3000 K - 70	100 W	558 mm	293 mm	Anthracite
CLD	5.9 kg	530 mA	4126 lm - 4000 K - 70	25 W	558 mm	293 mm	Anthracite
CLD	5.9 kg	530 mA	3919 lm - 3000 K - 70	25 W	558 mm	293 mm	Anthracite
CLD	5.9 kg	530 mA	8252 lm - 4000 K - 70	50 W	558 mm	293 mm	Anthracite
CLD	5.9 kg	530 mA	7840 lm - 3000 K - 70	50 W	558 mm	293 mm	Anthracite
CLD	5.9 kg	530 mA	12381 lm - 4000 K - 70	76 W	558 mm	293 mm	Anthracite
CLD	5.9 kg	530 mA	11763 lm - 3000 K - 70	76 W	558 mm	293 mm	Anthracite
CLD	5.9 kg	350 mA	2771 lm - 4000 K - 70	16 W	558 mm	293 mm	Anthracite
CLD	5.9 kg	350 mA	2632 lm - 3000 K - 70	16 W	558 mm	293 mm	Anthracite
CLD	5.9 kg	350 mA	5543 lm - 4000 K - 70	33 W	558 mm	293 mm	Anthracite
CLD	5.9 kg	350 mA	5265 lm - 3000 K - 70	33 W	558 mm	293 mm	Anthracite
CLD	5.9 kg	350 mA	8316 lm - 4000 K - 70	50 W	558 mm	293 mm	Anthracite
CLD	5.9 kg	350 mA	7900 lm - 3000 K - 70	50 W	558 mm	293 mm	Anthracite

Accessories

	Name	Description
	504 Single arm
	508 Double arm
	1491 Pole to be buried
	1493 Pole with base
	1477 Urban Pole - with base
	1478 Urban Pole to be buried
	1508 Fluted pole ø 120 with base
	1509 Fluted pole ø 120

Dimensions

Luminaire length	558 mm
Luminaire Width	293 mm
Luminaire height	115 mm

The reported luminous flux is the flux emitted by the light source with a tolerance of ± 10% compared to the indicated value. The W tot column indicates the total wattage absorbed by the system without exceeding 10% of the indicated value.
