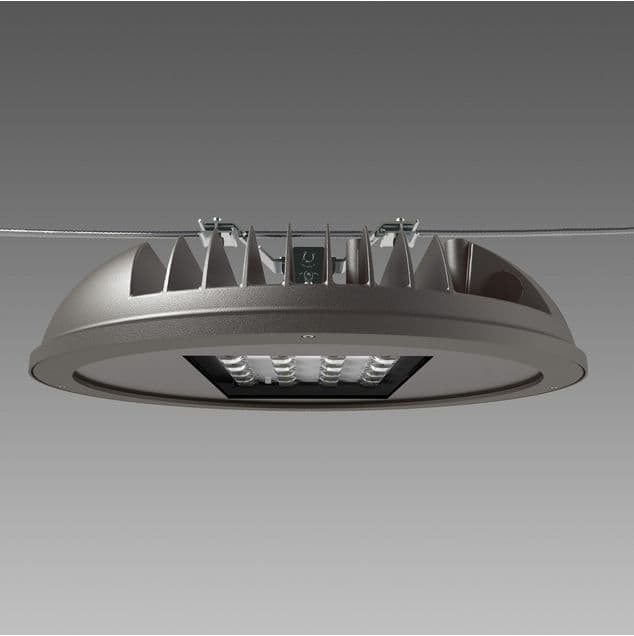

1784 Astro LED suspension centre street
Installation type
End cap
Application usages
Description
Aesthetically pleasing and energy-saving light that lasts in time: the highest performance of new lighting technologies is achieved with the technical requirements and reliability of state-of-the-art luminaires, such as those designed by Disano, a company with over fifty years of experience in the lighting industry.Astro, a luminaire equipped with the latest generation of LEDs, was developed with this in mind. ASTRO is perfect for sports facilities, both indoors and outdoors.It is a suitable and verstatile solution thanks to its symmetic and asymmetric optics.A simple, linear design is combined with sophisticated technology for exceptional technical performance: Astro was designed to exploit the full potential of the new high-efficiency LED lights.The quality of the materials used and the fixture's high reliability, guaranteed by Disano, are a safe investment.It is possible to choose the driving current of the LEDs to ensure that the appropriate power is always available for any given design condition.
Versions
Code | Kg | Nominal Current | Lumen Output - K - CRI | TotW | Colour |
---|---|---|---|---|---|
11.1 kg | 700 mA | 20818 lm - 4000 K - 70 | 203 W | Grey | |
11.1 kg | 700 mA | 19361 lm - 3000 K - 70 | 203 W | Grey | |
12 kg | 700 mA | 20818 lm - 4000 K - 70 | 203 W | Graphite | |
12 kg | 700 mA | 19361 lm - 3000 K - 70 | 203 W | Graphite | |
9.14 kg | 700 mA | 13876 lm - 4000 K - 70 | 135 W | Grey | |
9.14 kg | 700 mA | 12905 lm - 3000 K - 70 | 135 W | Grey | |
11.1 kg | 700 mA | 13876 lm - 4000 K - 70 | 135 W | Graphite | |
9.02 kg | 700 mA | 12905 lm - 3000 K - 70 | 135 W | Graphite | |
9.58 kg | 700 mA | 10407 lm - 4000 K - 70 | 101 W | Graphite | |
8.865 kg | 700 mA | 9679 lm - 3000 K - 70 | 101 W | Graphite | |
9 kg | 700 mA | 10407 lm - 4000 K - 70 | 101 W | Grey | |
9 kg | 700 mA | 9679 lm - 3000 K - 70 | 101 W | Grey |
Accessories
Name | Description | |
---|---|---|
55 Suspension mount |
Dimensions
Luminaire height | 100 mm |
Diameter | 462 mm |
The reported luminous flux is the flux emitted by the light source with a tolerance of ± 10% compared to the indicated value. The W tot column indicates the total wattage absorbed by the system without exceeding 10% of the indicated value.
