1245 Torpedo 2.0 - wide beam
Installation type
Mast-top and hockey stick
Application usages
Description

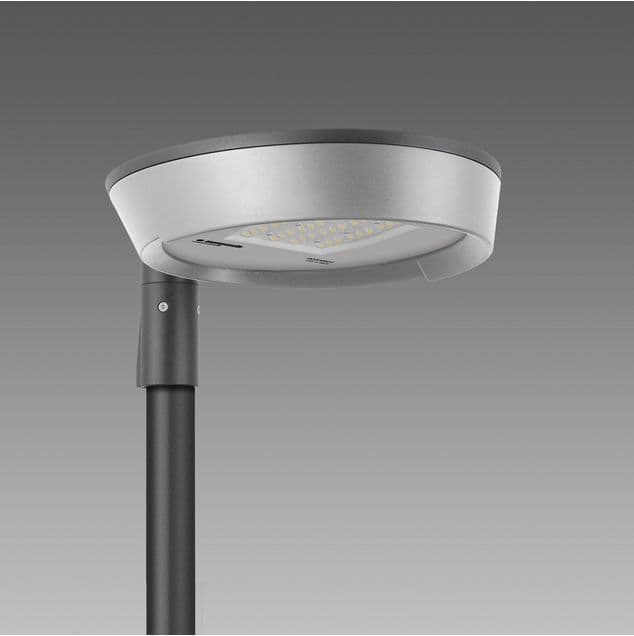

Torpedo 2.0 is a next-generation urban luminaire, an evolution of a Disano top seller, now upgraded with state-of-the-art LED technology.Thanks to its high energy efficiency and extended lifespan, Torpedo 2.0 is perfectly suited for any urban environment.Its design has been studied to maximise light efficiency while seamlessly blending into the surrounding urban landscape. Featuring a versatile LED configuration, Torpedo 2.0 is available in multiple versions - including roto-symmetric, street, cycle/pedestrian, and asymmetric - ensuring optimal light distribution tailored to the specific needs of each setting.Another notable advantage of the Torpedo 2.0 is the ability to select the driving current of the LEDs. This allows for customisable efficiency: a lower current minimises energy waste, while a higher light output reduces the number of luminaires required, enhancing overall performance and cost-effectiveness.In summary, Torpedo 2.0 offers an advanced urban lighting solution that combines cutting-edge technology, efficient design, and exceptional adaptability. It is the ideal choice for those seeking durable, energy-efficient lighting that can meet the demands of diverse urban environments.
Versions
| Code | Wiring name | Kg | Lumen Output - K - CRI | TotW | Colour | Length | Width |
|---|---|---|---|---|---|---|---|
| CLD | 4.5 kg | 1874 lm - 4000 K - ≥70 | 12 W | 611 mm | 323 mm | Grey | |
| CLD | 4.5 kg | 1780 lm - 3000 K - ≥70 | 12 W | 611 mm | 323 mm | Grey | |
| CLD | 4.5 kg | 3420 lm - 4000 K - ≥70 | 22 W | 611 mm | 323 mm | Grey | |
| CLD | 4.5 kg | 3250 lm - 3000 K - ≥70 | 22 W | 611 mm | 323 mm | Grey | |
| CLD | 4.5 kg | 4985 lm - 4000 K - ≥70 | 32 W | 611 mm | 323 mm | Grey | |
| CLD | 4.5 kg | 4736 lm - 3000 K - ≥70 | 32 W | 611 mm | 323 mm | Grey | |
| CLD | 4.5 kg | 6505 lm - 4000 K - ≥70 | 45 W | 611 mm | 323 mm | Grey | |
| CLD | 4.5 kg | 5180 lm - 3000 K - ≥70 | 45 W | 611 mm | 323 mm | Grey |
Dimensions
The reported luminous flux is the flux emitted by the light source with a tolerance of ± 10% compared to the indicated value. The W tot column indicates the total wattage absorbed by the system without exceeding 10% of the indicated value.
