1748 Sicura - wide beam LED
Installation type
Recessed
Application usages
Indoor and outdoor
Description

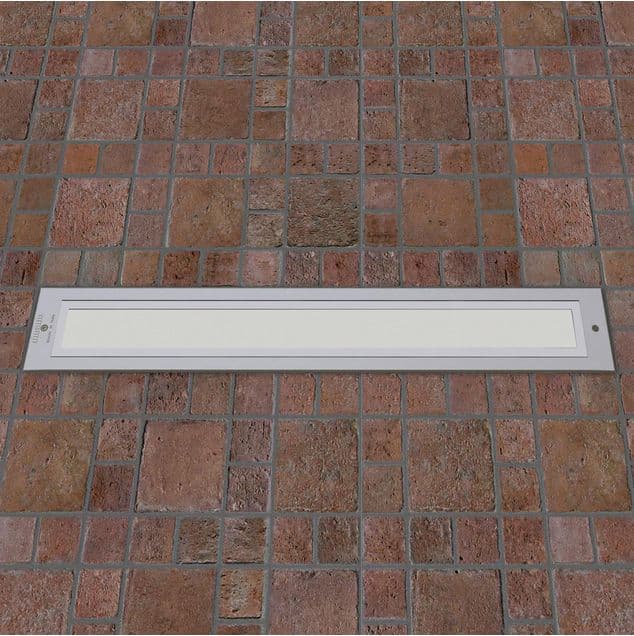

Sicura is a linear lighting fixture with an aluminum housing made to enhance architectural lighting designs, providing uniform light and high performance. It is ideal for outdoor and indoor applications, and has a high degree of protection IP67. Available in several versions with a wide range of optics.
Versions
| Code | Wiring name | Kg | Lumen Output - K - CRI | TotW | Colour | Length | Width |
|---|---|---|---|---|---|---|---|
| CLD | 3.9 kg | 899 lm - 4000 K - ≥80 | 14 W | 630 mm | 112 mm | Grey | |
| CLD | 3.9 kg | 836 lm - 3000 K - ≥80 | 14 W | 630 mm | 112 mm | Grey | |
| CLD | 3.9 kg | 1800 lm - 4000 K - ≥80 | 28 W | 630 mm | 112 mm | Grey | |
| CLD | 3.9 kg | 1674 lm - 3000 K - ≥80 | 28 W | 630 mm | 112 mm | Grey | |
| CLD | 7.2 kg | 1576 lm - 4000 K - ≥80 | 24 W | 1230 mm | 112 mm | Grey | |
| CLD | 7.2 kg | 1466 lm - 3000 K - ≥80 | 24 W | 1230 mm | 112 mm | Grey | |
| CLD | 7.2 kg | 3261 lm - 4000 K - ≥80 | 48 W | 1230 mm | 112 mm | Grey | |
| CLD | 7.2 kg | 3033 lm - 3000 K - ≥80 | 48 W | 1230 mm | 112 mm | Grey |
Accessories
| Name | Description | |
|---|---|---|
| 905 Bracket for false ceiling |

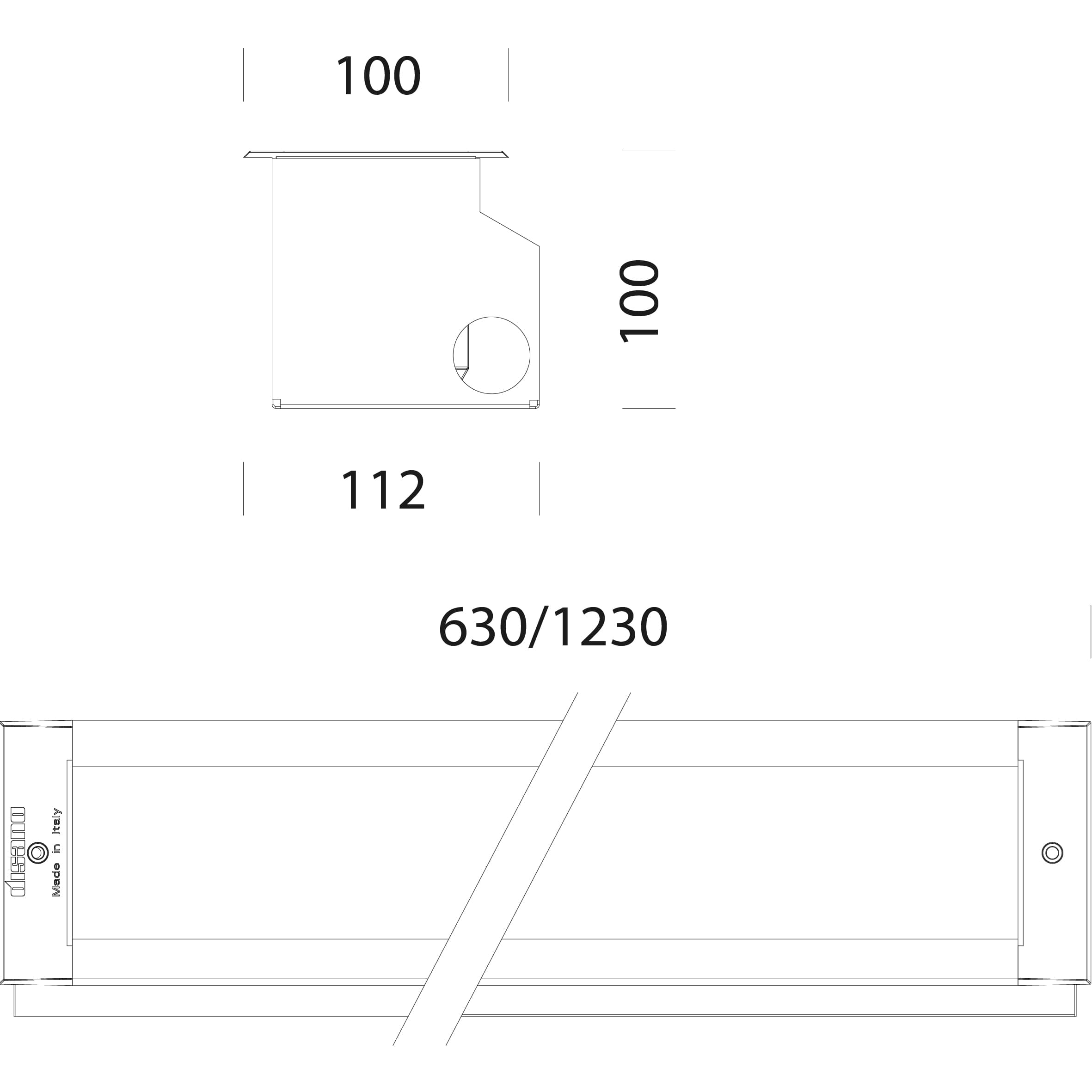

Dimensions
| Luminaire length | 1230 mm |
| Luminaire Width | 112 mm |
| Luminaire height | 100 mm |
The reported luminous flux is the flux emitted by the light source with a tolerance of ± 10% compared to the indicated value. The W tot column indicates the total wattage absorbed by the system without exceeding 10% of the indicated value.
