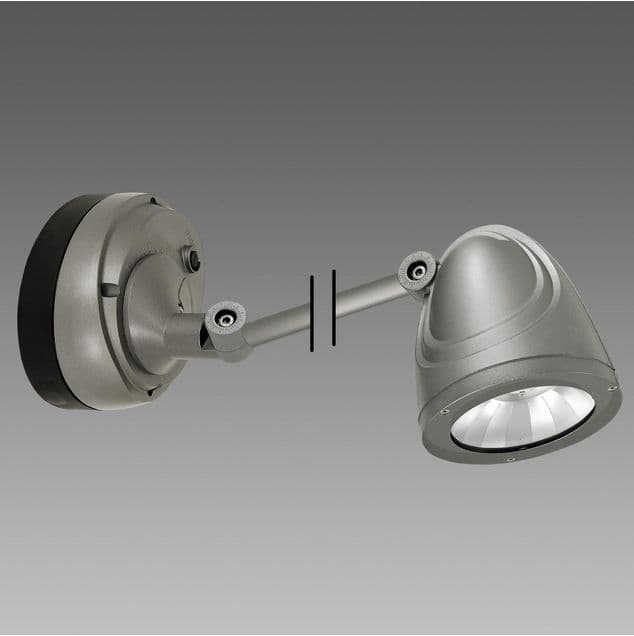

1523 Elfo - DIP SWITCH with rods
Installation type
Ceiling
Application usages
Outdoor
Description
A complete product that meets needs and wishes of lighting designers.
| Code | Wiring | The LEDs | WTot | K - Lumen Output - CRI - Degrees |
|---|---|---|---|---|
| 432838-00 | CLD | 900 | 49 | 4000K – 5700lm – CRI80 – 50° |
| 432838-00 | CLD | 700 | 37 | 4000K - 4515lm – CRI80 – 50° |
| 432838-00 | CLD | 500 | 26 | 4000K - 3280lm – CRI80 – 50° |
Versions
| Code | Wiring name | Kg | Nominal Current | Lumen Output - K - CRI | Beam angle | TotW | Colour | Length | Width |
|---|---|---|---|---|---|---|---|---|---|
| CLD | 3.1 kg | 900 mA | 5702 lm - 4000 K - 80 | 50 ° | 49 W | 220 mm | 220 mm | Graphite |
Accessories
| Name | Description | |
|---|---|---|
| 120 Pole support | ||
| 119 Spike | ||
| 188 Board | ||
| 116 Angle support |

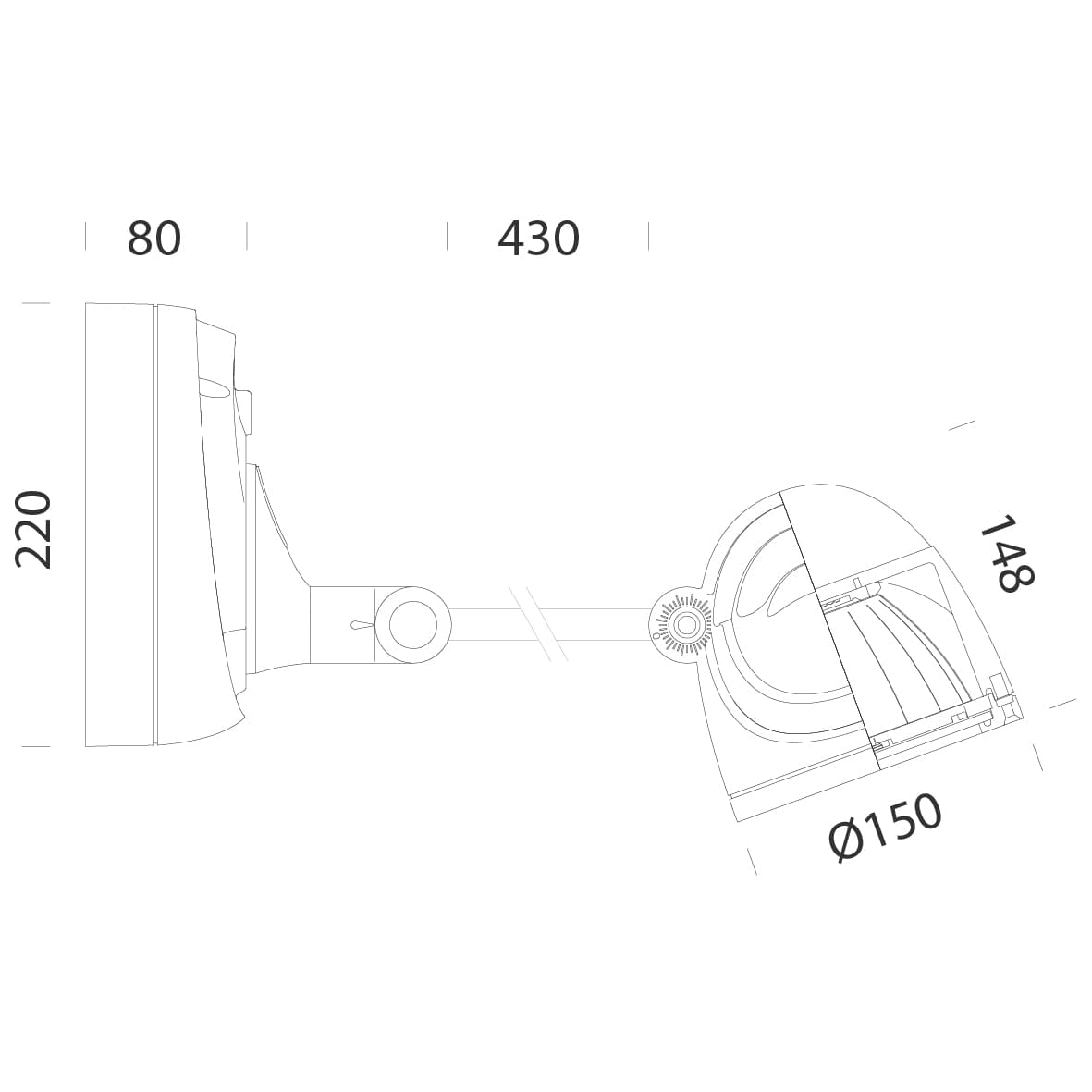

Dimensions
| Luminaire length | 220 mm |
| Luminaire Width | 220 mm |
| Luminaire height | 740 mm |
The reported luminous flux is the flux emitted by the light source with a tolerance of ± 10% compared to the indicated value. The W tot column indicates the total wattage absorbed by the system without exceeding 10% of the indicated value.
