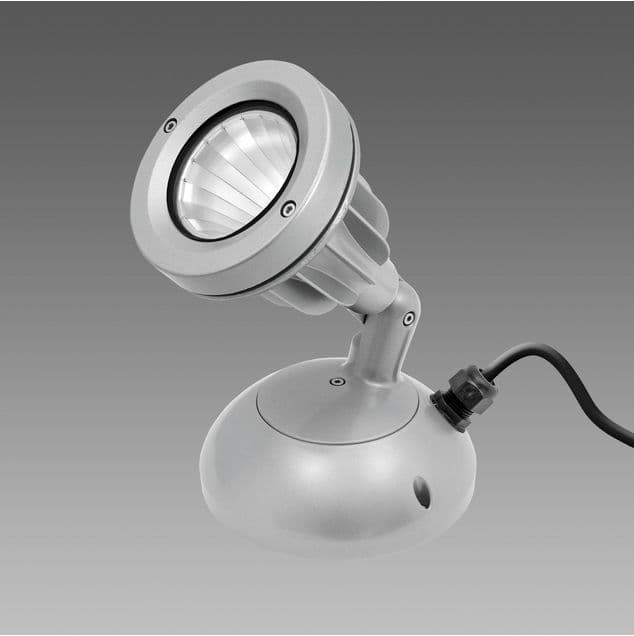

2537 Koala Big - DIP SWITCH
Installation type
Ceiling
Application usages
Description
Disano's KOALA range of residential garden spotlights is appreciated for its elegant design and the excellent lighting performance of a small-sized luminaire that blends perfectly into outdoor environments.These spotlights, which are produced in different versions, can serve multiple applications ranging from green areas to monument lighting, from infrastructure to hospitality, always producing high quality results.The new KOALA BIG version offers higher wattages, so that it can meet any architectural lighting requirement in the best way possible. Furthermore, in this upgraded version it is possible to use DALI wiring for the remote control of each individual lighting fixture.With KOALA BIG, lighting design becomes more spectacular and intelligent.
| Code | LED | TotW | K - Lumen Output - CRI - ° |
|---|---|---|---|
| 431880-00 | 700mA | 25 | 4000K - 3493lm - CRI 80 - 13° |
| 431880-00 | 1050mA | 39 | 4000K - 4492lm - CRI 80 - 13° |
| 431880-39 | 700mA | 25 | 3000K - 3318m - CRI 80 - 13° |
| 431880-39 | 1050mA | 39 | 3000K - 4267lm - CRI 80 - 13° |
| 431882-00 | 700mA | 25 | 4000K - 3600lm - CRI 80 - 28° |
| 431882-00 | 1050mA | 39 | 4000K - 4633lm - CRI 80 - 28° |
| 431882-39 | 700mA | 25 | 3000K - 3420lm - CRI 80 - 28° |
| 431882-39 | 1050mA | 39 | 3000K - 4401lm - CRI 80 - 28° |
| 431883-00 | 700mA | 25 | 4000K - 3597lm - CRI 80 - 48° |
| 431883-00 | 1050mA | 39 | 4000K - 4626lm - CRI 80 - 48° |
| 431883-39 | 700mA | 25 | 3000K - 3417lm - CRI 80 - 48° |
| 431883-39 | 1050mA | 39 | 3000K - 4395lm - CRI 80 - 48° |
Versions
| Code | Wiring name | Kg | Nominal Current | Lumen Output - K - CRI | Beam angle | TotW | Colour | Length | Width |
|---|---|---|---|---|---|---|---|---|---|
| CLD | 1.5 kg | 700 mA | 3493 lm - 4000 K - 80 | 13 ° | 25 W | 160 mm | 160 mm | Grey | |
| CLD | 1.5 kg | 700 mA | 3318 lm - 3000 K - 80 | 13 ° | 25 W | 160 mm | 160 mm | Grey | |
| CLD | 1.5 kg | 700 mA | 3600 lm - 4000 K - 80 | 28 ° | 25 W | 160 mm | 160 mm | Grey | |
| CLD | 1.5 kg | 700 mA | 3420 lm - 3000 K - 80 | 28 ° | 25 W | 160 mm | 160 mm | Grey | |
| CLD | 1.5 kg | 700 mA | 3597 lm - 4000 K - 80 | 48 ° | 25 W | 160 mm | 160 mm | Grey | |
| CLD | 1.5 kg | 700 mA | 3417 lm - 3000 K - 80 | 48 ° | 25 W | 160 mm | 160 mm | Grey |
Accessories
| Name | Description | |
|---|---|---|
| 119 Spike |

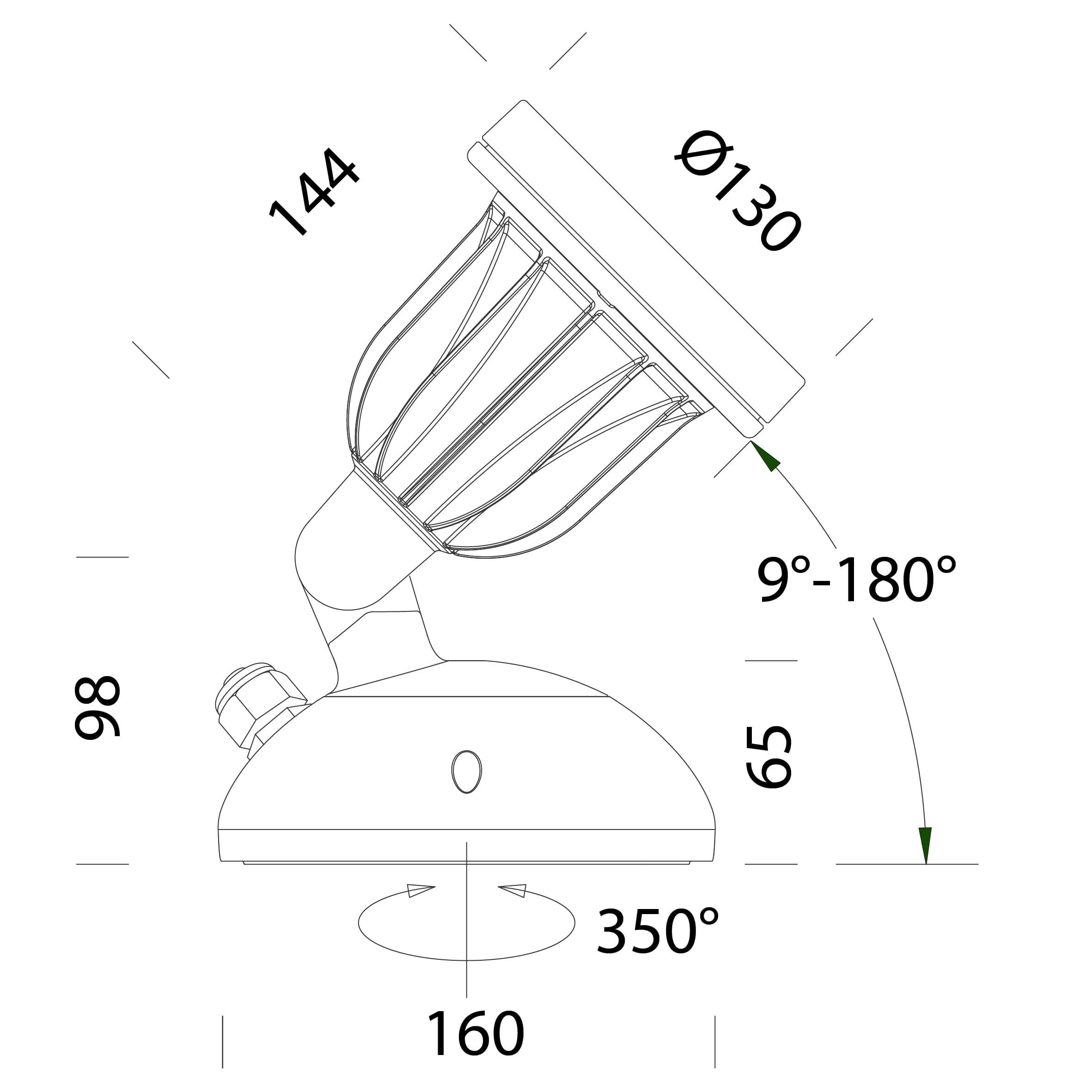

Dimensions
| Luminaire length | 160 mm |
| Luminaire Width | 160 mm |
| Luminaire height | 242 mm |
The reported luminous flux is the flux emitted by the light source with a tolerance of ± 10% compared to the indicated value. The W tot column indicates the total wattage absorbed by the system without exceeding 10% of the indicated value.
