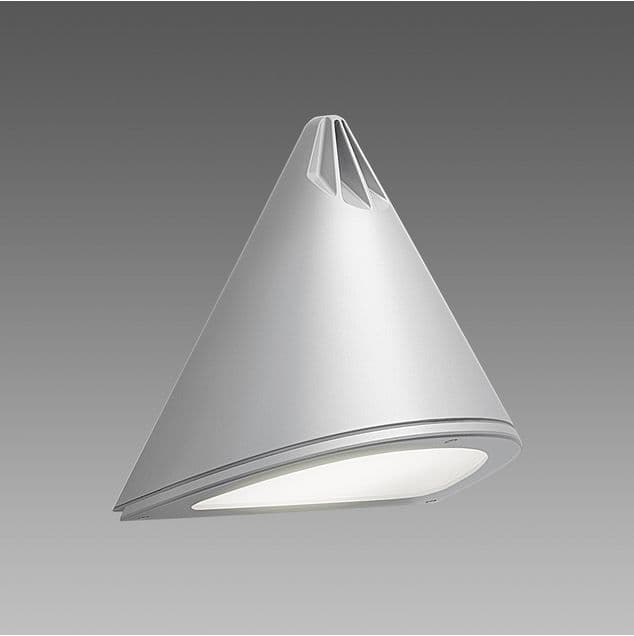

1282 Meridiana LED
Installation type
Ceiling
Application usages
Outdoor
Description
1282 Meridiana LED
Versions
| Code | Wiring name | Kg | Lumen Output - K - CRI | TotW | Colour | Length | Width |
|---|---|---|---|---|---|---|---|
| CLD | 3.1 kg | 1119 lm - 4000 K - ≥80 | 9 W | 375 mm | 224 mm | Grey | |
| CLD | 3.1 kg | 1119 lm - 4000 K - ≥80 | 9 W | 375 mm | 224 mm | Graphite | |
| CLD | 3.1 kg | 1990 lm - 4000 K - ≥80 | 17 W | 375 mm | 224 mm | Grey | |
| CLD | 3.1 kg | 1990 lm - 4000 K - ≥80 | 17 W | 375 mm | 224 mm | Graphite |
Accessories
| Name | Description | |
|---|---|---|
| 96 Connection for ø60 - Meridiana |

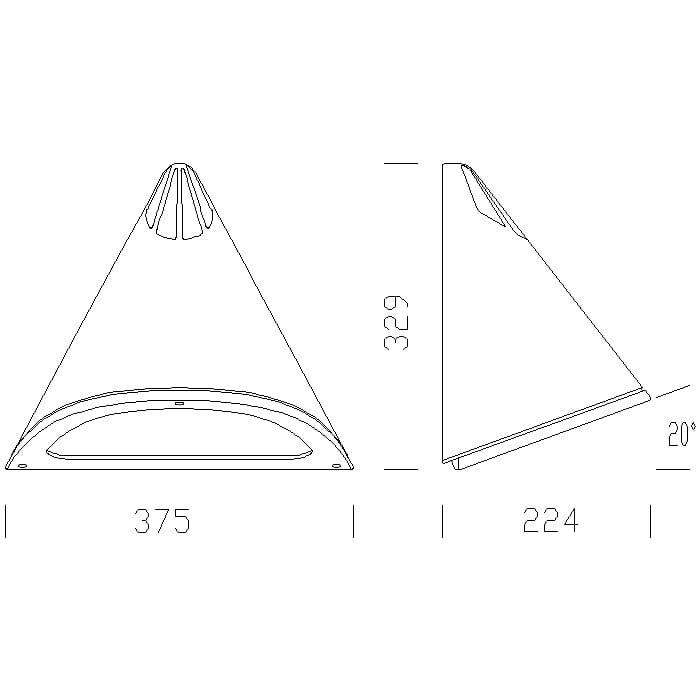

Dimensions
| Luminaire length | 375 mm |
| Luminaire Width | 224 mm |
| Luminaire height | 329 mm |
The reported luminous flux is the flux emitted by the light source with a tolerance of ± 10% compared to the indicated value. The W tot column indicates the total wattage absorbed by the system without exceeding 10% of the indicated value.
