6633 Madrid - suspension-ceiling direct light - with opal diffuser
Installation type
Ceiling
Application usages
Indoor
Description
Linear LED fixture, distinguished by the quality of materials and excellent luminous efficiency. The result: extremely high-performance lighting, capable of achieving high color rendering and protecting eye health, ensuring great visual comfort. Madrid is therefore able to meet any type of request, whether functional or design-related.
Versions
| Code | Wiring name | Kg | Lumen Output - K - CRI | TotW | Colour |
|---|---|---|---|---|---|
| CLD | 1.1 kg | 1488 lm - 4000 K - >80 | 13 W | White | |
| CLD | 2 kg | 2977 lm - 4000 K - >80 | 26 W | White | |
| CLD | 2.7 kg | 3756 lm - 4000 K - >80 | 34 W | White |
Accessories

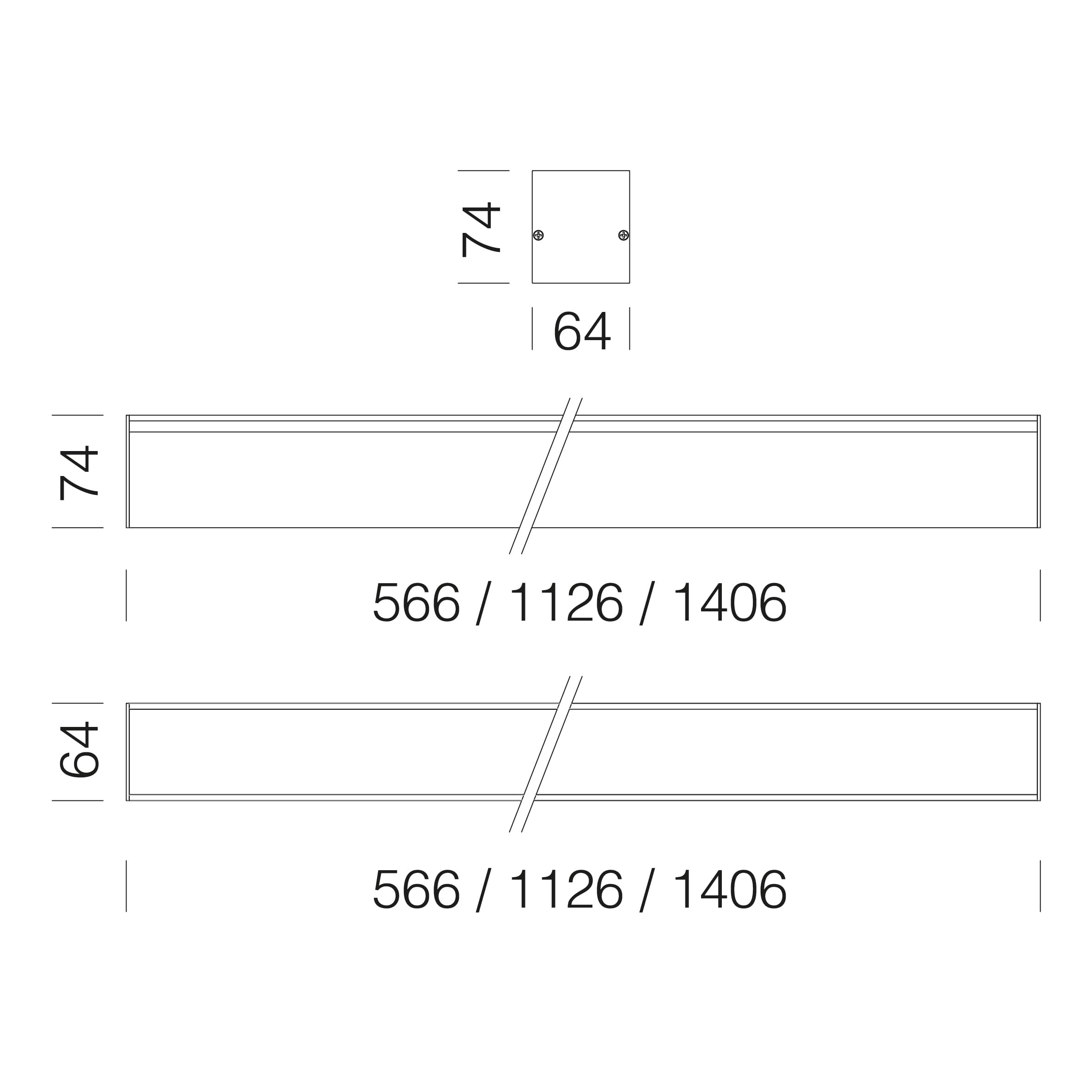

Dimensions
| Luminaire Width | 64 mm |
| Luminaire height | 74 mm |
The reported luminous flux is the flux emitted by the light source with a tolerance of ± 10% compared to the indicated value. The W tot column indicates the total wattage absorbed by the system without exceeding 10% of the indicated value.
