6633 Madrid - suspension-ceiling direct light - with opal diffuser
Installation type
Ceiling
Application usages
Description
The Human Centric Lighting approach puts the spotlight on people's health and well-being. Light is required to be of high quality, with perfect colour rendering, without glare and flickering effects.Madrid, a linear LED luminaire, was born to satisfy all these different requirements. It stands out in the quality of its materials and state-of-the-art optic technology. The result is perfect lighting with high colour rendering for workers' safety and visual wellbeing. Madrid, which can be surface-mounted, flush-mounted or suspended, is therefore able to meet all kinds of functional and design requirements.
Versions
Code | Kg | Lumen Output - K - CRI | TotW | Colour |
---|---|---|---|---|
0.90 kg | 1488 lm - 4000 K - >80 | 13 W | White | |
1.80 kg | 2977 lm - 4000 K - >80 | 26 W | White | |
2.2 kg | 3756 lm - 4000 K - >80 | 34 W | White |
Accessories

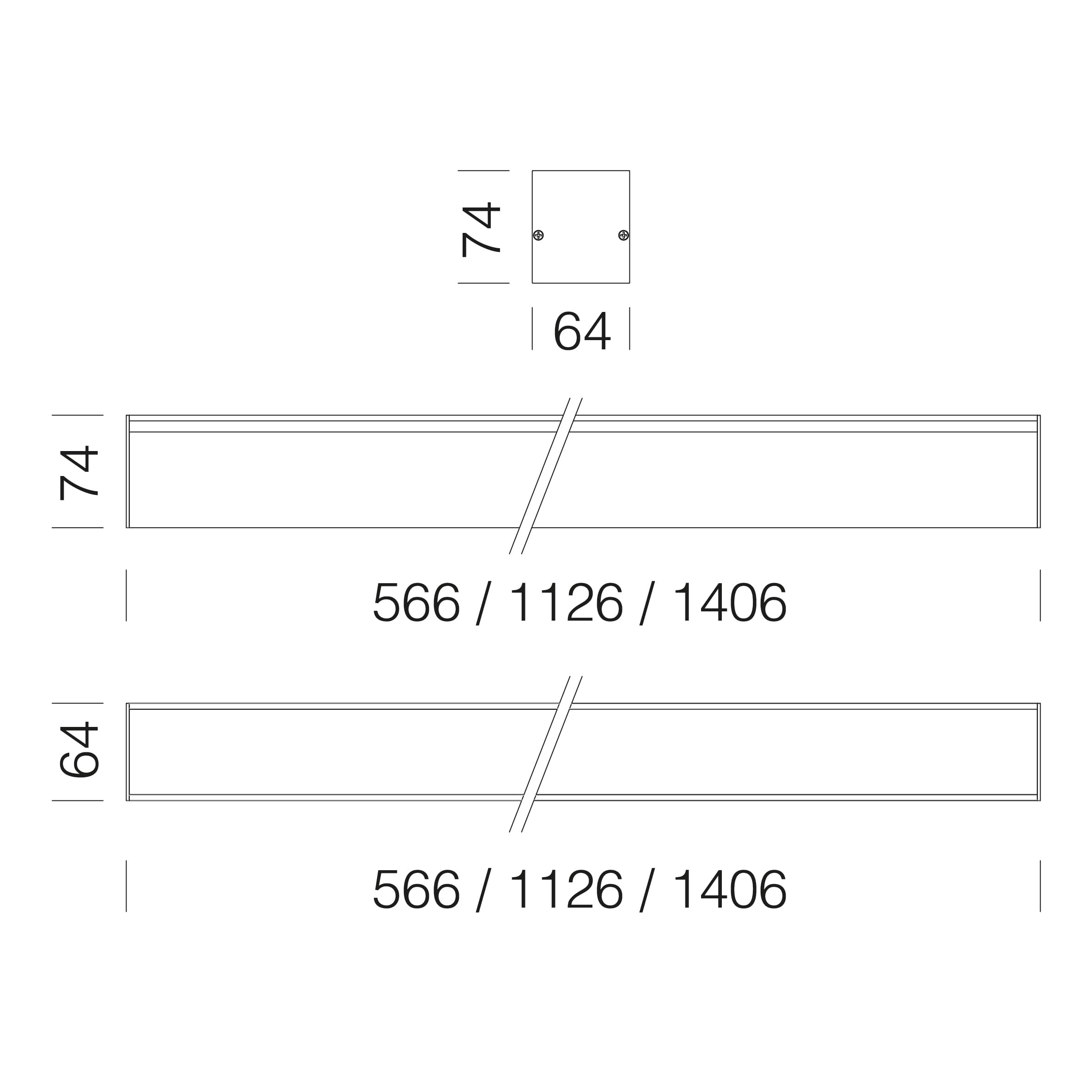

Dimensions
Luminaire Width | 64 mm |
Luminaire height | 74 mm |
The reported luminous flux is the flux emitted by the light source with a tolerance of ± 10% compared to the indicated value. The W tot column indicates the total wattage absorbed by the system without exceeding 10% of the indicated value.
