1980 Micro Rodio - COB
Installation type
Bracket
Application usages
Indoor and outdoor
Description

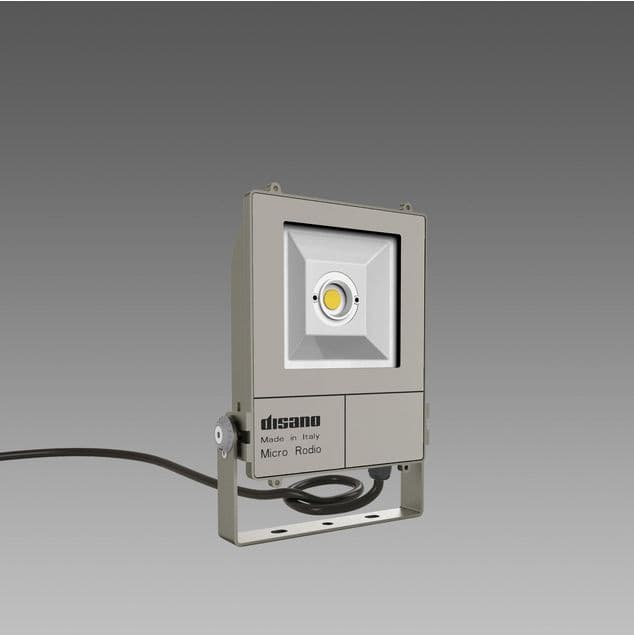

To meet the needs of those lighting projects where the size of the fixture makes the difference, Disano has created Micro Rodio, the floodlight that concentrates all the technology of the Rodio family into extremely compact dimensions. Also available with COB LED for a greater lighting quality, it stands out for a very long lamp life thanks to top quality materials and LED sources.
Versions
| Code | Kg | Lumen Output - K - CRI | TotW | Colour |
|---|---|---|---|---|
| 1.11 kg | 2905 lm - 4000 K - 80 | 29 W | Graphite | |
| 1.11 kg | 2702 lm - 3000 K - 80 | 29 W | Graphite | |
| 1.11 kg | 2905 lm - 4000 K - 80 | 29 W | White | |
| 1.07 kg | 2702 lm - 3000 K - 80 | 29 W | White | |
| 1.13 kg | 2905 lm - 4000 K - 80 | 29 W | Anthracite | |
| 1.09 kg | 2702 lm - 3000 K - 80 | 29 W | Anthracite | |
| 1.05 kg | 1484 lm - 4000 K - 80 | 15 W | Graphite | |
| 1.05 kg | 1484 lm - 4000 K - 80 | 15 W | White | |
| 1.11 kg | 3537 lm - 4000 K - 80 | 38 W | Graphite | |
| 1.09 kg | 3289 lm - 3000 K - 80 | 38 W | Graphite | |
| 1.11 kg | 3537 lm - 4000 K - 80 | 38 W | White | |
| 1.072 kg | 3289 lm - 3000 K - 80 | 38 W | White | |
| 1.11 kg | 3537 lm - 4000 K - 80 | 38 W | Anthracite | |
| 0.995 kg | 1484 lm - 4000 K - 80 | 15 W | Anthracite | |
| 1.09 kg | 3289 lm - 3000 K - 80 | 38 W | Anthracite |
Accessories
| Name | Description | |
|---|---|---|
| 339 Connector | ||
| 41 Adjustable arm |

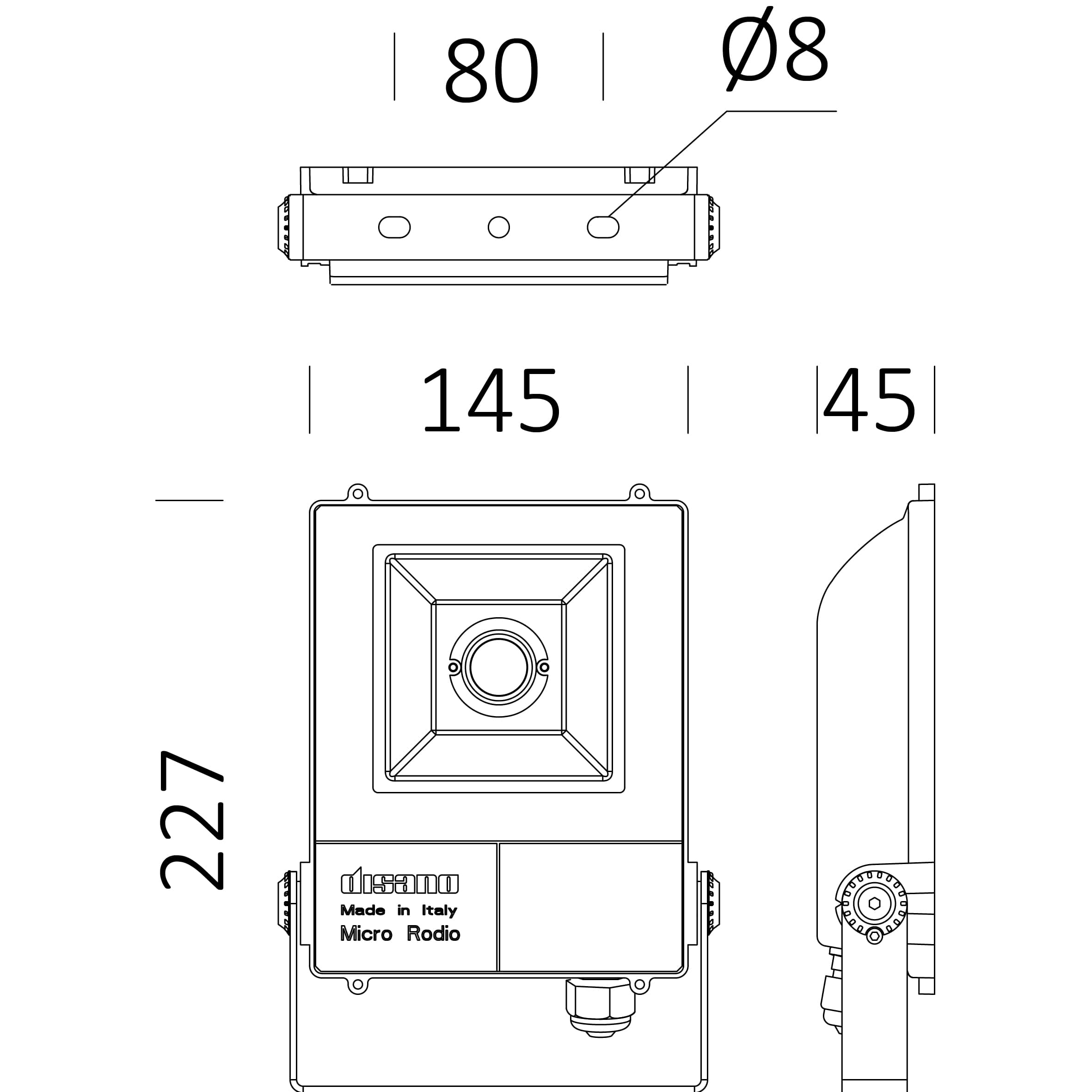

Dimensions
| Luminaire length | 145 mm |
| Luminaire Width | 45 mm |
| Luminaire height | 227 mm |
The reported luminous flux is the flux emitted by the light source with a tolerance of ± 10% compared to the indicated value. The W tot column indicates the total wattage absorbed by the system without exceeding 10% of the indicated value.
