Snow 5
Typ instalace
Recessed
Použité aplikace
Popis

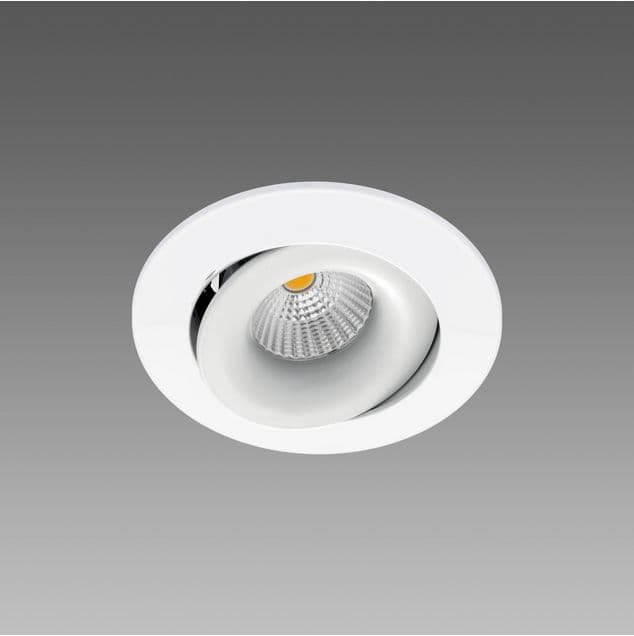

Whether in the round or square version, this range of recessed LED spotlights is the perfect solution for installations that are designed to hide their physical presence once fitted.These spotlights are shaped to blend perfectly into the false ceilings where they are fitted.
Provedení
Kód | Kabeláž | Kg | Lumen Output - K - CRI | Luminaire beam angle | WTot | Barva | Průměr |
---|---|---|---|---|---|---|---|
CLD | 0.5 kg | 957 lm - 3000 K - 92 | 38 ° | 10 W | 110 mm | White | |
CLD | 0.5 kg | 990 lm - 4000 K - 92 | 38 ° | 10 W | 110 mm | White | |
CLD | 0.5 kg | 957 lm - 3000 K - 92 | 38 ° | 10 W | 110 mm | Chrome | |
CLD | 0.5 kg | 990 lm - 4000 K - 92 | 38 ° | 10 W | 110 mm | Chrome |
Příslušenství
Jméno | Popis | |
---|---|---|
EM Zestaw R |

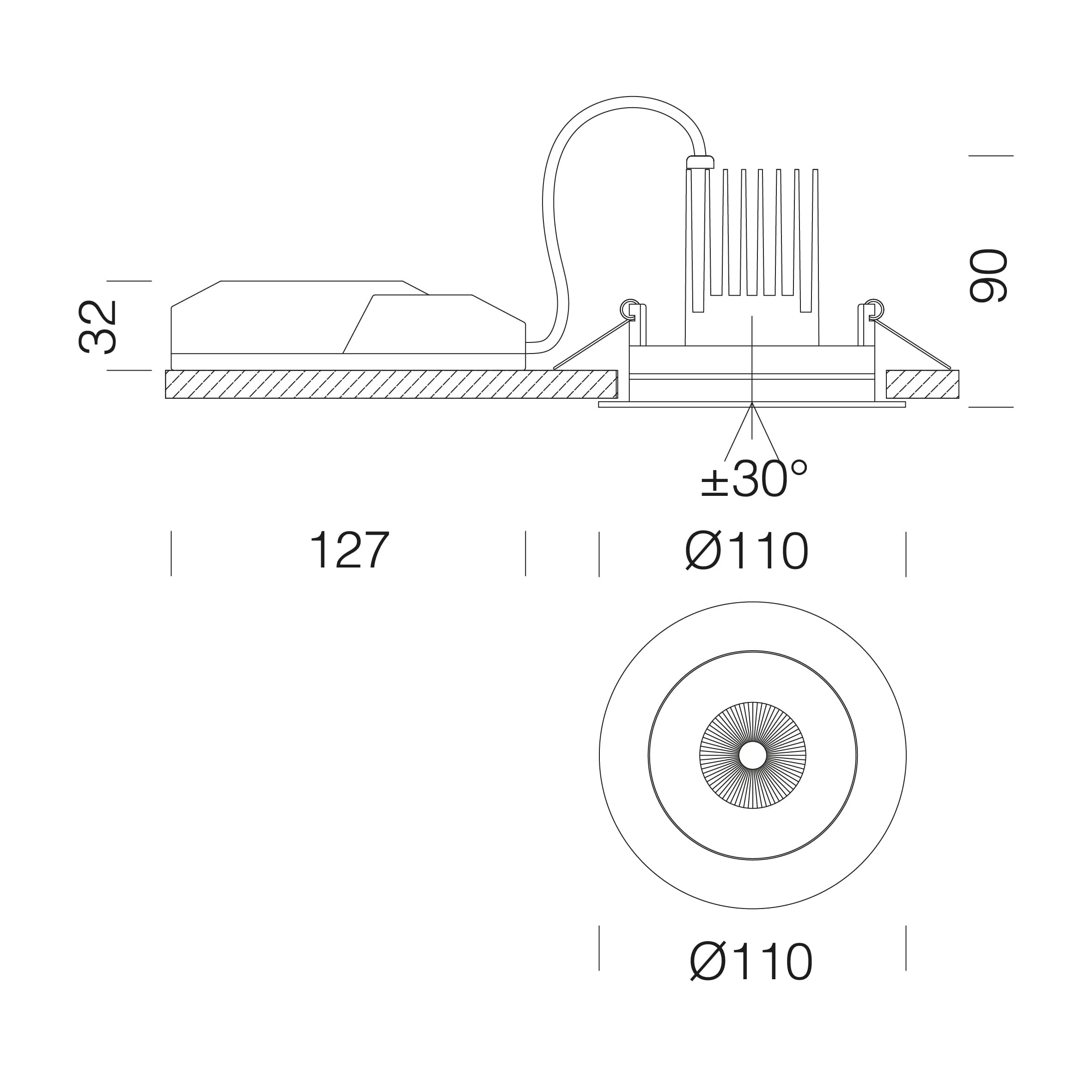

Rozměry
Luminaire height | 90 mm |
Diameter | 110 mm |
Udávaný světelný tok je tok vyzařovaný světelným zdrojem s tolerancí ± 10 % oproti uvedené hodnotě. Sloupec W tot udává celkový příkon absorbovaný systémem, aniž by překročil 10 % uvedené hodnoty.
