Disano

Nizza 3 - for slats

Typ instalace

Recessed

Použité aplikace

Indoor

The superior quality of LED lighting is now more affordable and accessible thanks to a benchmarking product that offers, at contained costs, the ideal light for offices, shopping centres, hotels and healthcare facilities and in general all spaces where continuous lighting is necessary.It is the best and easiest way to get one of today's most advanced technology in interior lighting solutions.The presence of a LED source is not always synonym with excellent performance. The long service life and optimal light output of a lighting system also depends on the use of top-notch materials that are tested, controlled and selected with care to maintain lighting and aesthetic quality over time: lumen maintenance, perfect colour rendering, no glare and anti-yellowing of components.A special slab fitted between the LED source and the diffuser is responsible for the operation, quality and amount of light emitted from the light panel. This slab is made in PMMA (polymethyl methacrylate), a polymer that keeps its characteristics unaltered and prevents the lens from yellowing. Other similar fixtures use materials such as, for example, polystyrene (PS), which do not have the same properties and characteristics, and are therefore available at much lower costs.The result? Unlike the PMMA, the slab in PS becomes yellow after 6000-8000 hours of operation, decreasing both the amount and the quality of the light emitted, even during the day, when the fixture is switched off, as well as compromising the perfect integration of the white panel into the false ceiling, affecting the overall appearance of the installation. Thanks to this slab in PMMA, our panels can fully benefit from the lighting advantages ensured by the most advanced LED sources and keep them unaltered in time. Ceiling lighting fixture with steel frame and brackets, suitable for installation on false ceilings with rounded slats at a pitch of 100.

KódKgLumen Output - K - CRIWTotBarva
3.94 kg3675 lm - 4000 K - 8334 WWhite
5.822 kg3675 lm - 4000 K - 8334 WWhite
5.822 kg3675 lm - 4000 K - 8334 WWhite
4.124 kg3417 lm - 3000 K - 8334 WWhite
5.822 kg3417 lm - 3000 K - 8334 WWhite
5.822 kg3417 lm - 3000 K - 8334 WWhite
JménoPopis
EM Kit R

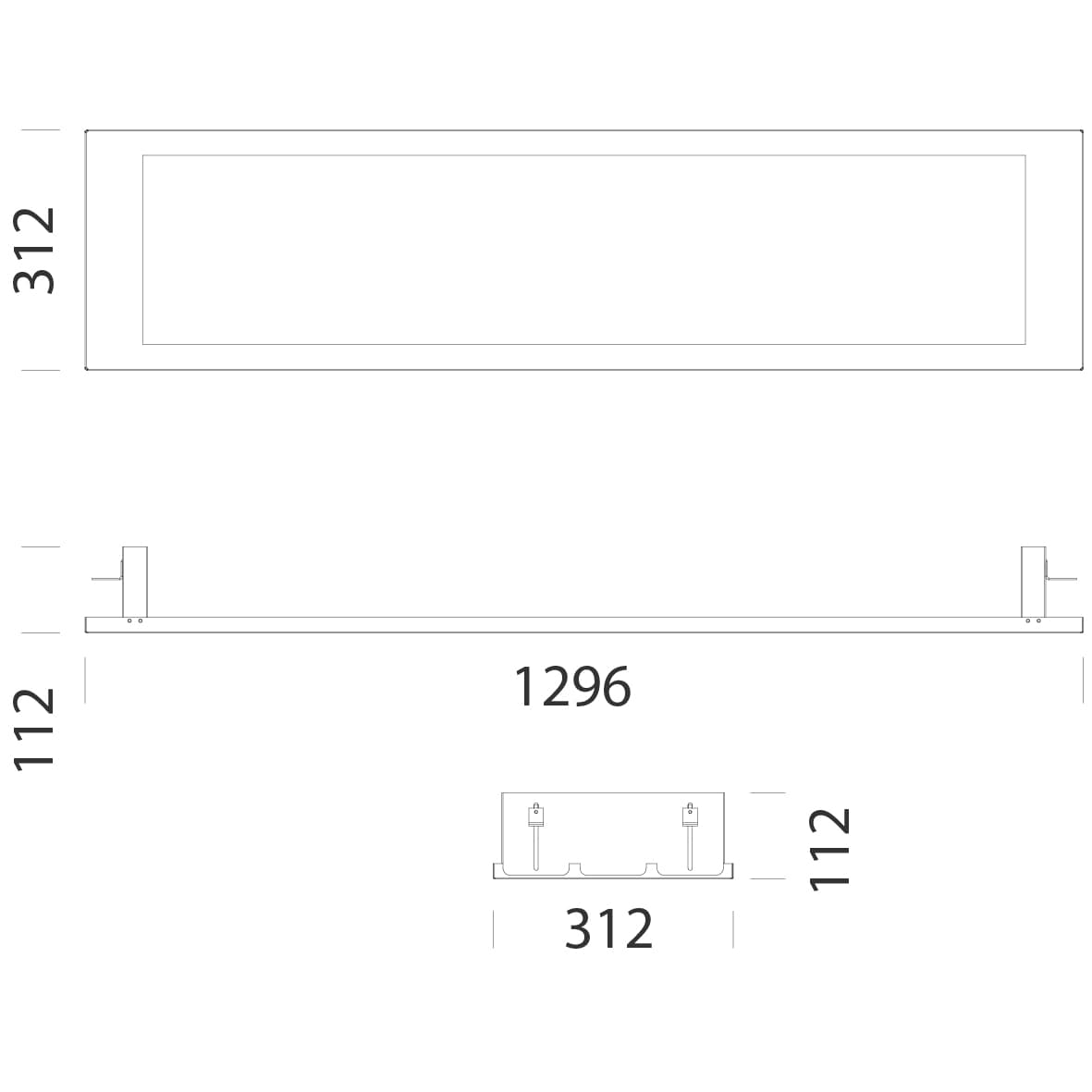

Luminaire length1296 mm
Luminaire Width312 mm
Luminaire height112 mm

Udávaný světelný tok je tok vyzařovaný světelným zdrojem s tolerancí ± 10 % oproti uvedené hodnotě. Sloupec W tot udává celkový příkon absorbovaný systémem, aniž by překročil 10 % uvedené hodnoty.
