Disano

Asso B - big - ZOOM MULTICOLOR - CCT POWER SWITCH

Typ instalace

Ceiling

Použité aplikace

Indoor

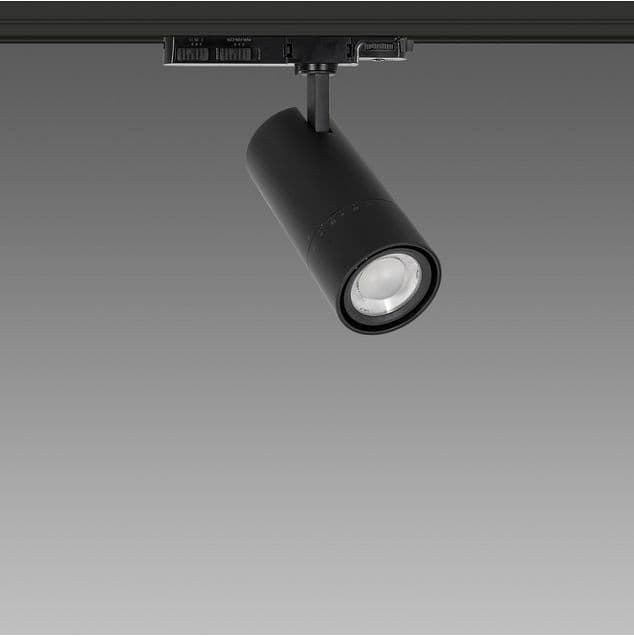

ASSO “B” ZOOM - MULTICOLOR: in a single body you have a complete lighting fixture that can meet every need with the possibility to adjust the light beam, with 3 colour temperatures in as many power wattages, maintaining aesthetic continuity while differentiating the amount of light emitted. All these requirements make it an excellent fixture for the lighting of retail, architectural, and museum settings. The main feature of this spotlight is the new colour-changing/output power technology. With two built-in switches positioned on the adapter, you can:• select 3 different colour temperatures, adjusting to most installations.• select the type of brightness with 3 output power ranges.

CodeWtotLEDK - Lumen Output - CRIDegrees
22044010-0020500CCT 2700K/4000K/6000K - 2088lm ÷ 2302lm - CRI>9024° ÷ 60°
22044010-0025600CCT 2700K/4000K/6000K - 2545lm ÷ 2822lm - CRI>9024° ÷ 60°
22044010-0030750CCT 2700K/4000K/6000K - 2961lm ÷ 3256lm - CRI>9024° ÷ 60°
22044030-0020500CCT 2700K/4000K/6000K - 2088lm ÷ 2302lm - CRI>9024° ÷ 60°
22044030-0025600CCT 2700K/4000K/6000K - 2545lm ÷ 2822lm - CRI>9024° ÷ 60°
22044030-0030750CCT 2700K/4000K/6000K - 2961lm ÷ 3256lm - CRI>9024° ÷ 60°
KódKabelážKgLumen Output - K - CRIWTotBarvaPrůměr
CLD0.8 kg3256 lm - 4000 K - >9030 W80 mmWhite
CLD0.8 kg3256 lm - 4000 K - >9030 W80 mmBlack

Udávaný světelný tok je tok vyzařovaný světelným zdrojem s tolerancí ± 10 % oproti uvedené hodnotě. Sloupec W tot udává celkový příkon absorbovaný systémem, aniž by překročil 10 % uvedené hodnoty.
