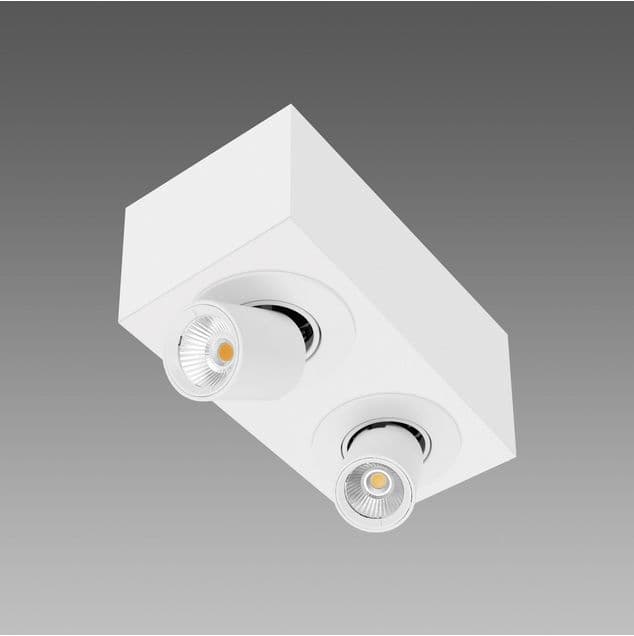

Asso 'C' 2 - small - ceiling

Typ instalace

Ceiling

Použité aplikace

Indoor

Popis

The primary goal of indoor lighting is to enhance visual wellbeing, aesthetic quality and energy savings. The new LED sources allow high luminance levels and excellent colour rendering.This is why Fosnova has extended the range of some of its top-sellers such as Asso, by adding versions with different sizes and adapters in order to adjust to different cable tracks, including versions with adjustable recessed spotlights, all fitting high-performance LEDs, a new technology that handles colour saturation in a more natural and homogenous manner. The brand-new Asso spotlights prove to be perfect for all those spaces where reflexes, transparencies and the quality of whites and colours play a key role.The range is complete and includes fixtures capable of fulfilling any interior lighting need. In a single body, you can use different optics and LEDs with different power outputs, keeping aesthetic continuity, despite differencing the amount of light: all these requirements make the fixture an excellent choice for retailing, architectural and museum lighting applications.

Provedení

Kabeláž	Kg	Lumen Output - K - CRI	Luminaire beam angle	WTot	Barva	Délka	Šířka
CLD	3.1 kg	1455 lm - 3000 K - >80	20 °	28 W	300 mm	150 mm	White
CLD-D-D	3.1 kg	1455 lm - 3000 K - >80	20 °	28 W	300 mm	150 mm	White
CLD-D-D	3.1 kg	1556 lm - 4000 K - >80	20 °	28 W	300 mm	150 mm	White
CLD	3.1 kg	1556 lm - 4000 K - >80	20 °	28 W	300 mm	150 mm	White
CLD	3.1 kg	1469 lm - 3000 K - >80	28 °	28 W	300 mm	150 mm	White
CLD-D-D	3.1 kg	1469 lm - 3000 K - >80	28 °	28 W	300 mm	150 mm	White
CLD-D-D	3.1 kg	1571 lm - 4000 K - >80	28 °	28 W	300 mm	150 mm	White
CLD	3.1 kg	1571 lm - 4000 K - >80	28 °	28 W	300 mm	150 mm	White
CLD	3.1 kg	1401 lm - 3000 K - >80	40 °	28 W	300 mm	150 mm	White
CLD-D-D	3.1 kg	1401 lm - 3000 K - >80	40 °	28 W	300 mm	150 mm	White
CLD-D-D	3.1 kg	1499 lm - 4000 K - >80	40 °	28 W	300 mm	150 mm	White
CLD	3.1 kg	1499 lm - 4000 K - >80	40 °	28 W	300 mm	150 mm	White
CLD	3.1 kg	1413 lm - 3000 K - >80	60 °	28 W	300 mm	150 mm	White
CLD-D-D	3.1 kg	1413 lm - 3000 K - >80	60 °	28 W	300 mm	150 mm	White
CLD-D-D	3.1 kg	1512 lm - 4000 K - >80	60 °	28 W	300 mm	150 mm	White
CLD	3.1 kg	1512 lm - 4000 K - >80	60 °	28 W	300 mm	150 mm	White

Rozměry

Udávaný světelný tok je tok vyzařovaný světelným zdrojem s tolerancí ± 10 % oproti uvedené hodnotě. Sloupec W tot udává celkový příkon absorbovaný systémem, aniž by překročil 10 % uvedené hodnoty.
