754 Heron - UGR<19
Typ instalace
Ceiling
Použité aplikace
Popis

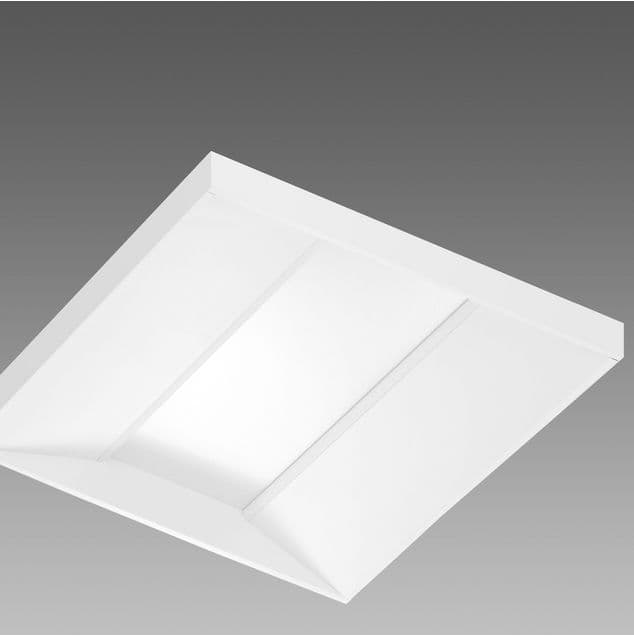

High light efficiency, UGR<19 glare rating, much lower energy costs and all the advantages granted by the new LED sources are some of the qualities that distinguish Heron, the evolution of the traditional LED ceiling panel. Its special optical design was developed to avoid glare and make any working environment more pleasant, visually safe and comfortable. Moreover, Heron causes no photobiological risk and is also available in the dimmable version.
Provedení
Kód | Kabeláž | Kg | Lumen Output - K - CRI | WTot | Barva |
---|---|---|---|---|---|
CLD-D-D | 5.7 kg | 3375 lm - 4000 K - 80 | 28 W | White | |
CLD | 5.7 kg | 3375 lm - 4000 K - 80 | 28 W | White | |
CLD-D-D | 5.7 kg | 4556 lm - 4000 K - 80 | 38 W | White | |
CLD | 5.7 kg | 4556 lm - 4000 K - 80 | 38 W | White |
Příslušenství
Jméno | Popis | |
---|---|---|
600 EM power supply kit |

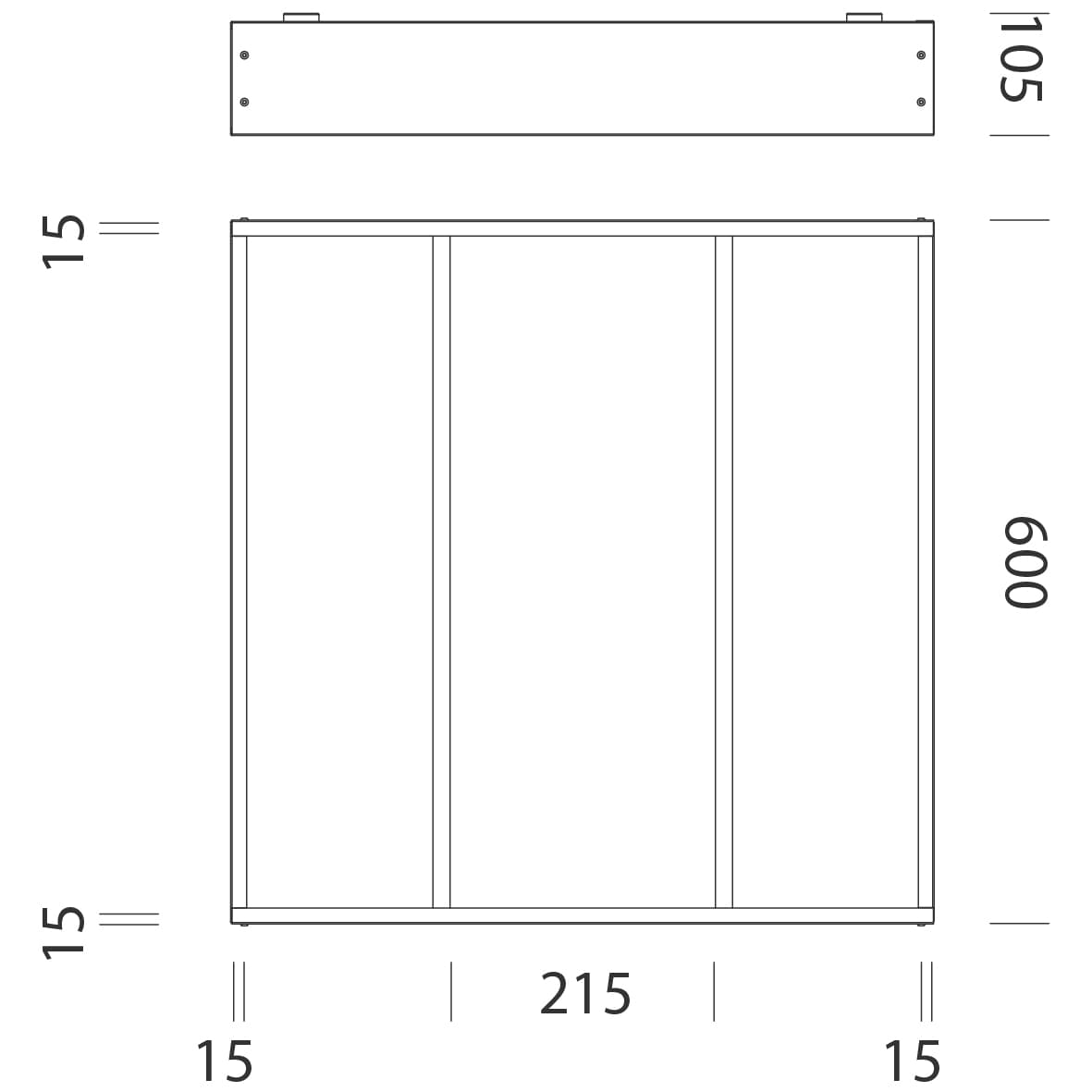

Rozměry
Luminaire length | 600 mm |
Luminaire Width | 600 mm |
Luminaire height | 105 mm |
Udávaný světelný tok je tok vyzařovaný světelným zdrojem s tolerancí ± 10 % oproti uvedené hodnotě. Sloupec W tot udává celkový příkon absorbovaný systémem, aniž by překročil 10 % uvedené hodnoty.
