Disano

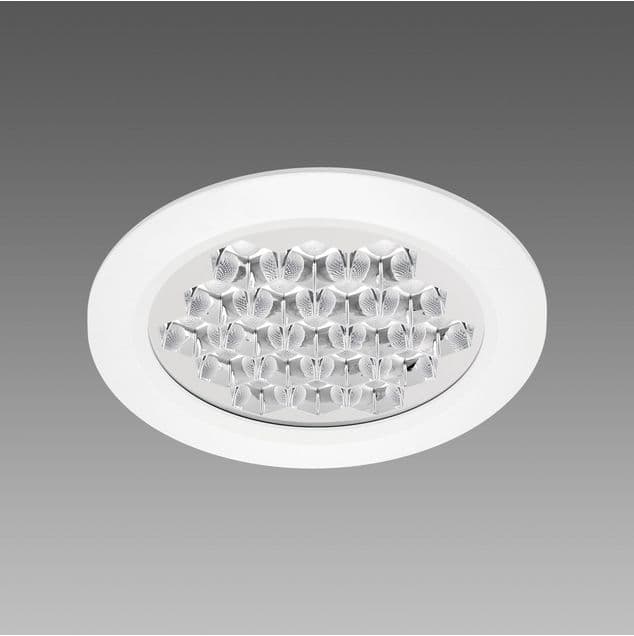

911 Health Dark UGR<19 - ø220 - DIP SWITCH

Typ instalace

Recessed

Použité aplikace

Indoor

The lighting of passage areas and workstations (public buildings, offices, hotels and restaurants) is very important. Well-lit public and residential areas contribute to providing a sense of security and wellbeing. Robust, high-quality recessed spotlights of Disano's Health family are the ideal solution. They are easy to fit into any context, guaranteeing maximum efficiency and a long service life.The Health UGR<19 version is specifically designed for workplaces. It features glare-free metallised aluminium optics and the latest generation of high-efficiency LEDs. In addition to the excellent quality of the LED light, featuring an extraordinary colour rendering index, these fixtures are also certified as being 'low flicker', indicating a stable light output producing minimum flickering.The recessed version can be equipped with light management and control technology, such as presence sensors and remote-control systems to increase efficiency and life span, avoiding waste and unnecessary switching.DIP switch adjustment: the luminaire is equipped with a built-in DIP switch driver for setting the output current; this will enable to choose the right light flux for each lighting design.The chance to choose the needed LED pilot current will allow you to have the right amount of power adjusted to any given design requirement. Choosing a lower current will increase the efficiency and improve energy savings, while a higher current will provide more light and make it possible to reduce the number of luminaires installed.

CodeWiringKgColourI LED TotWK - Lumen Output - CRI – Degrees
156477-00CLD0.60WHITE800304000K - 3740lm - CRI 80
156477-00CLD0.60WHITE600224000K - 2900lm - CRI 80
156477-00CLD0.60WHITE700264000K - 3315lm - CRI 80
156477-00CLD0.60WHITE900334000K - 4150lm - CRI 80
156477-00CLD0.60WHITE950354000K - 4340lm - CRI 80
KódKgNominal CurrentLumen Output - K - CRIWTotBarva
0.550 kg800 mA3740 lm - 4000 K - 8030 WWhite
Luminaire height30 mm
Diameter220 mm

Udávaný světelný tok je tok vyzařovaný světelným zdrojem s tolerancí ± 10 % oproti uvedené hodnotě. Sloupec W tot udává celkový příkon absorbovaný systémem, aniž by překročil 10 % uvedené hodnoty.
