Disano

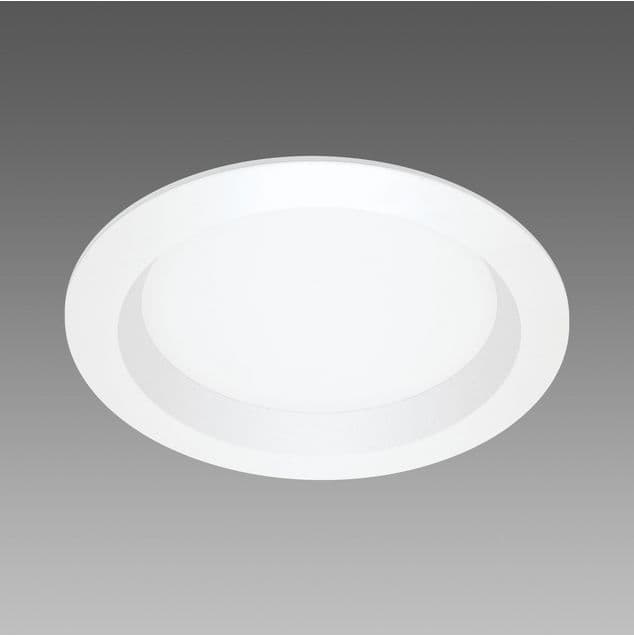

884 Compact CRI95 - DIP SWITCH

Typ instalace

Recessed

Použité aplikace

Indoor

The lighting of passage areas (stairwells, corridors, entrances) and workstations (public buildings, offices, hotels and restaurants) is very important in both easthetic and functional terms. Moreover, well-lit public and residential areas contribute to providing a sense of security and wellbeing.The robust and high-quality Compact recessed spotlights by Disano are the best solution, as they can be easily inserted into any setting while guaranteeing maximum efficiency and long service life.Disano's Compact spotlight now also includes the Compact Dark version, specifically designed for workplaces, now features glare-free metallised aluminium optics and the latest generation of high-efficiency LEDs.In addition to the excellent quality of the LED light, featuring an extraordinary colour rendering index, Health spotlights are also certified as being low flicker, indicating a stable light output producing minimum flicker levels.

Code Wiring LED WTot K - Lumen Output - CRI
156424-00CLD25094000K - 1200lm - CRI 95
156424-00CLD350134000K - 1720lm - CRI 95
156424-00CLD400144000K - 1830lm - CRI 95
156424-00CLD450164000K - 2120lm - CRI 95
156424-00CLD500184000K - 2385lm - CRI 95
156424-39CLD25093000K - 1130lm - CRI 95
156424-39CLD350133000K - 1630lm - CRI 95
156424-39CLD400143000K - 1760lm - CRI 95
156424-39CLD450163000K - 2010lm - CRI 95
156424-39CLD500183000K - 2266lm - CRI 95
156425-00CLD600224000K - 2884lm - CRI 95
156425-00CLD650244000K - 3134lm - CRI 95
156425-00CLD700254000K - 3342lm - CRI 95
156425-00CLD800294000K - 3775lm - CRI 95
156425-39CLD600223000K - 2729lm - CRI 95
156425-39CLD650243000K - 2960lm - CRI 95
156425-39CLD700253000K - 3175lm - CRI 95
156425-39CLD800293000K - 3586lm - CRI 95
KódKabelážKgNominal CurrentLumen Output - K - CRIWTotBarva
CLD-EC0.6 kg500 mA2385 lm - 4000 K - 9518 WWhite
CLD-E1.1 kg500 mA2385 lm - 4000 K - 9518 WWhite
CLD0.6 kg500 mA2385 lm - 4000 K - 9518 WWhite
CLD-EC0.6 kg500 mA2266 lm - 3000 K - 9518 WWhite
CLD-E1.1 kg500 mA2266 lm - 3000 K - 9518 WWhite
CLD0.6 kg500 mA2266 lm - 3000 K - 9518 WWhite
CLD-EC0.6 kg650 mA3134 lm - 4000 K - 9524 WWhite
CLD-E1.1 kg650 mA3134 lm - 4000 K - 9524 WWhite
CLD0.6 kg650 mA3134 lm - 4000 K - 9524 WWhite
CLD-EC0.6 kg650 mA2960 lm - 3000 K - 9524 WWhite
CLD-E1.1 kg650 mA2960 lm - 3000 K - 9524 WWhite
CLD0.6 kg650 mA2960 lm - 3000 K - 9524 WWhite

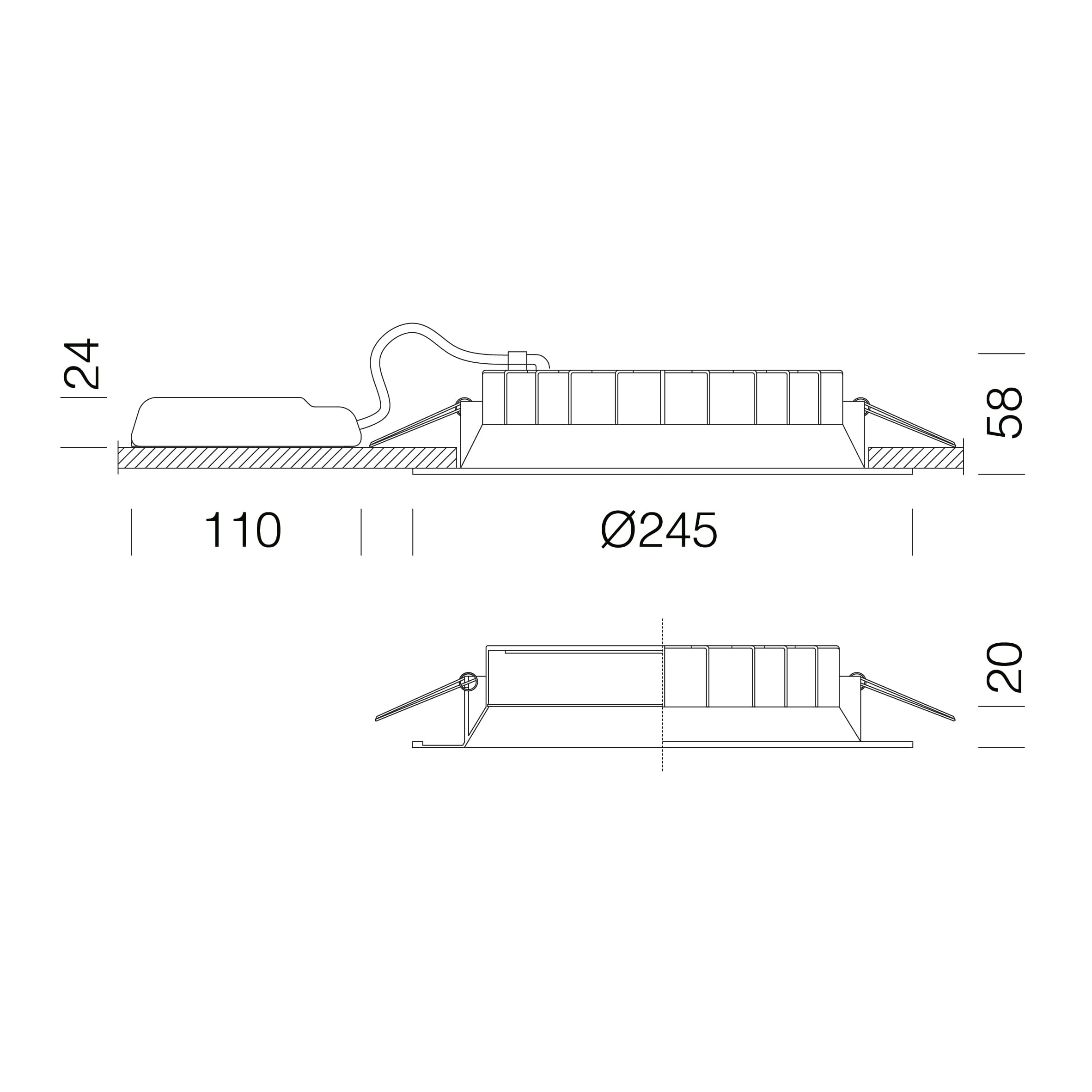

Luminaire height58 mm
Diameter245 mm

Udávaný světelný tok je tok vyzařovaný světelným zdrojem s tolerancí ± 10 % oproti uvedené hodnotě. Sloupec W tot udává celkový příkon absorbovaný systémem, aniž by překročil 10 % uvedené hodnoty.
