970 Thema - LED
Application usages
Description
Thema is a new lamp, which boasts the best technical features of the other waterproof fixtures in the Disano range, but with substantial differences that make it stand out from our major competitors.
Versions
| Code | Kg | Lumen Output - K - CRI | TotW |
|---|---|---|---|
| 1.8 kg | 2850 lm - 4000 K - ≥80 | 19 W | |
| 1.8 kg | 2850 lm - 4000 K - ≥80 | 19 W | |
| 1.8 kg | 2850 lm - 4000 K - ≥80 | 19 W | |
| 2.3 kg | 2850 lm - 4000 K - ≥80 | 22 W | |
| 2.3 kg | 2850 lm - 4000 K - ≥80 | 22 W | |
| 1.8 kg | 3750 lm - 4000 K - ≥80 | 25 W | |
| 1.8 kg | 3750 lm - 4000 K - ≥80 | 25 W | |
| 1.8 kg | 3750 lm - 4000 K - ≥80 | 25 W | |
| 2.3 kg | 3750 lm - 4000 K - ≥80 | 28 W | |
| 2.3 kg | 3750 lm - 4000 K - ≥80 | 28 W | |
| 1.8 kg | 4760 lm - 4000 K - ≥80 | 34 W | |
| 1.8 kg | 4760 lm - 4000 K - ≥80 | 34 W | |
| 1.8 kg | 4760 lm - 4000 K - ≥80 | 34 W | |
| 2.3 kg | 4760 lm - 4000 K - ≥80 | 37 W | |
| 2.3 kg | 4760 lm - 4000 K - ≥80 | 37 W | |
| 1.8 kg | 6862 lm - 4000 K - ≥80 | 49 W | |
| 1.8 kg | 6862 lm - 4000 K - ≥80 | 49 W | |
| 1.8 kg | 6862 lm - 4000 K - ≥80 | 49 W | |
| 2.3 kg | 6862 lm - 4000 K - ≥80 | 52 W | |
| 2.3 kg | 6862 lm - 4000 K - ≥80 | 52 W |
Accessories
| Name | Description | |
|---|---|---|
| 975 Anti-impact grid |

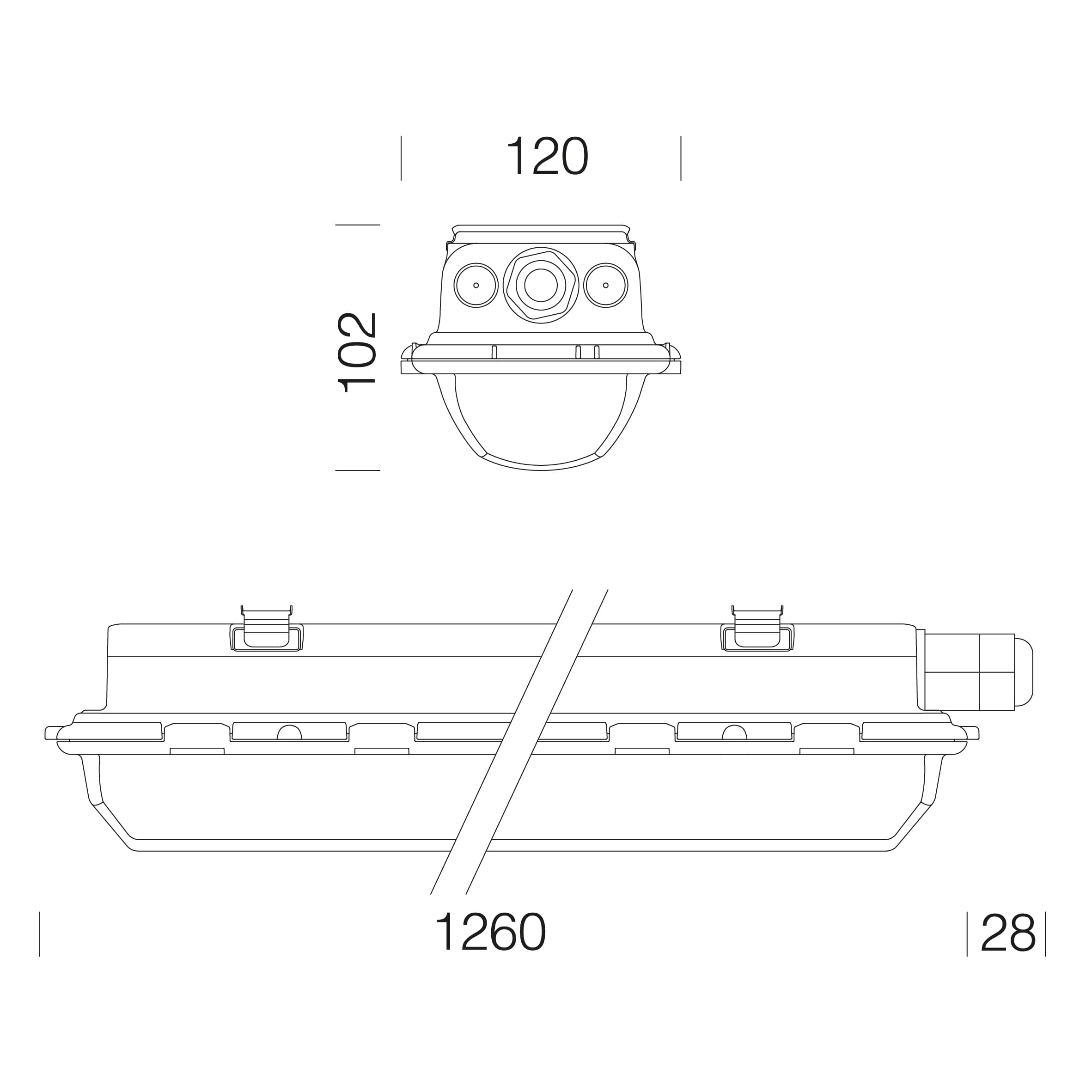

Dimensions
| Luminaire length | 1260 mm |
| Luminaire Width | 120 mm |
| Luminaire height | 102 mm |
The reported luminous flux is the flux emitted by the light source with a tolerance of ± 10% compared to the indicated value. The W tot column indicates the total wattage absorbed by the system without exceeding 10% of the indicated value.
