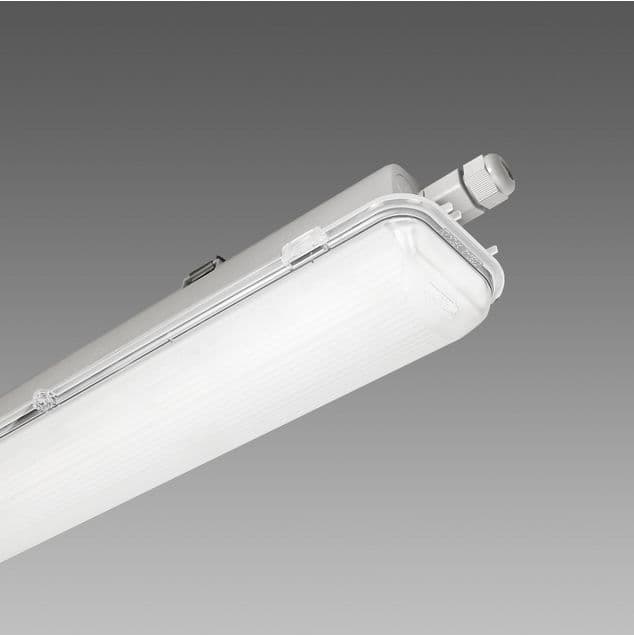

963 Hydro LED - High Performance

Application usages

Description

Disano Group's vast technological experience in the design and industrial production of lighting fixtures has led to the development of its new range of watertight LED fixtures. New Hydro LED is characterised by a modern design that blends well into any setting.

Versions

Kg	Lumen Output - K - CRI	TotW	Duljina	Širina
2.4 kg	3460 lm - 4000 K - ≥80	20 W	1260 mm	120 mm
2.4 kg	3460 lm - 4000 K - ≥80	20 W	1260 mm	120 mm
2.9 kg	3460 lm - 4000 K - ≥80	23 W	1260 mm	120 mm
2.4 kg	4250 lm - 4000 K - ≥80	25 W	1260 mm	120 mm
2.4 kg	4250 lm - 4000 K - ≥80	25 W	1260 mm	120 mm
2.9 kg	4250 lm - 4000 K - ≥80	28 W	1260 mm	120 mm
2.4 kg	5880 lm - 4000 K - ≥80	34 W	1260 mm	120 mm
2.4 kg	5880 lm - 4000 K - ≥80	34 W	1260 mm	120 mm
2.9 kg	5880 lm - 4000 K - ≥80	37 W	1260 mm	120 mm
1.9 kg	8232 lm - 4000 K - ≥80	47 W	1260 mm	120 mm
1.9 kg	8232 lm - 4000 K - ≥80	47 W	1260 mm	120 mm
2.4 kg	8232 lm - 4000 K - ≥80	50 W	1260 mm	120 mm
1.9 kg	9561 lm - 4000 K - ≥80	56 W	1260 mm	120 mm
1.9 kg	9561 lm - 4000 K - ≥80	56 W	1260 mm	120 mm
2.4 kg	9561 lm - 4000 K - ≥80	59 W	1260 mm	120 mm

Accessories

	Name	Description
	975 Anti-impact grid

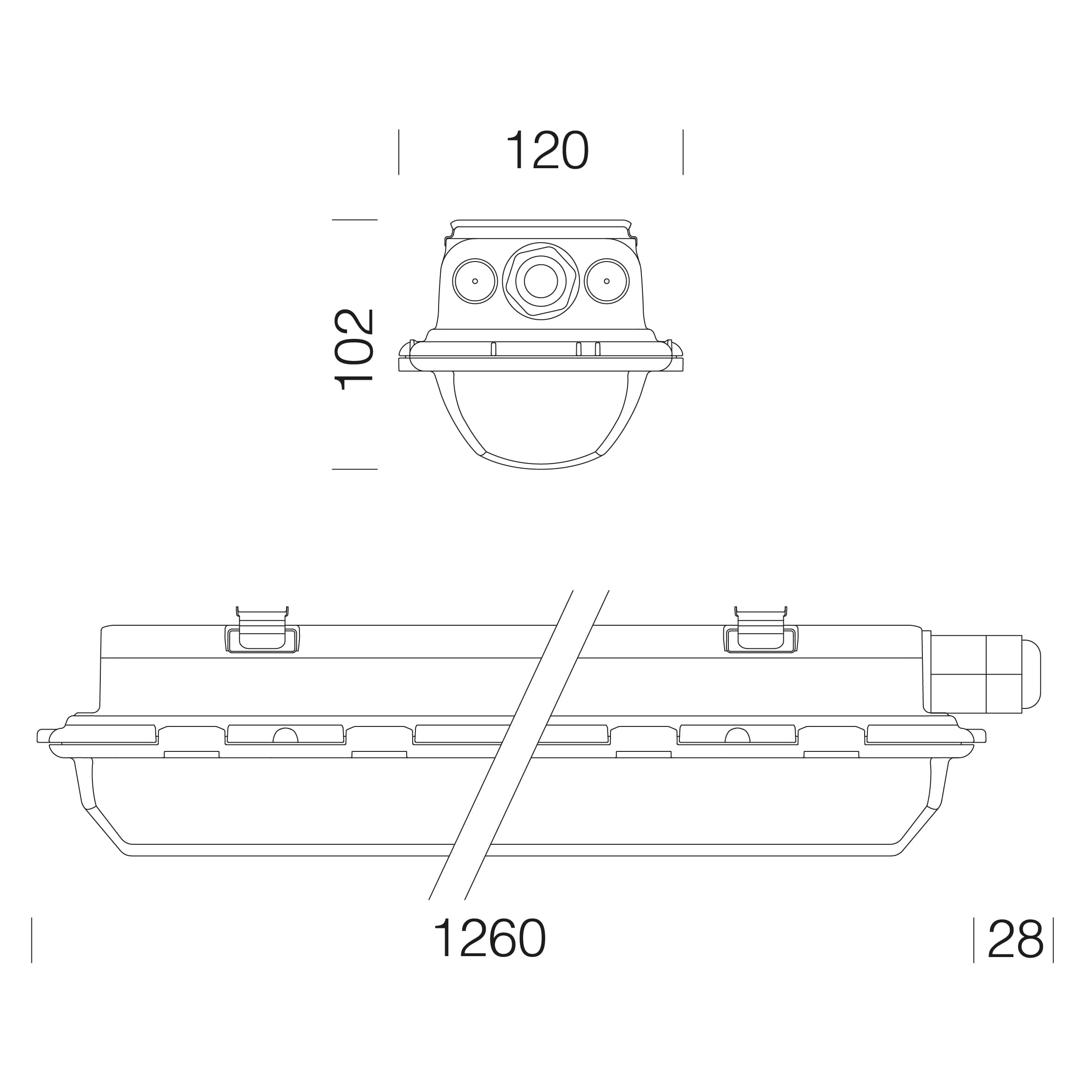

Dimensions

Luminaire length	1260 mm
Luminaire Width	120 mm
Luminaire height	102 mm

The reported luminous flux is the flux emitted by the light source with a tolerance of ± 10% compared to the indicated value. The W tot column indicates the total wattage absorbed by the system without exceeding 10% of the indicated value.
