Disano

3202 Lucerna Q2 LED COB

Installation type

Mast-top

Application usages

Outdoor

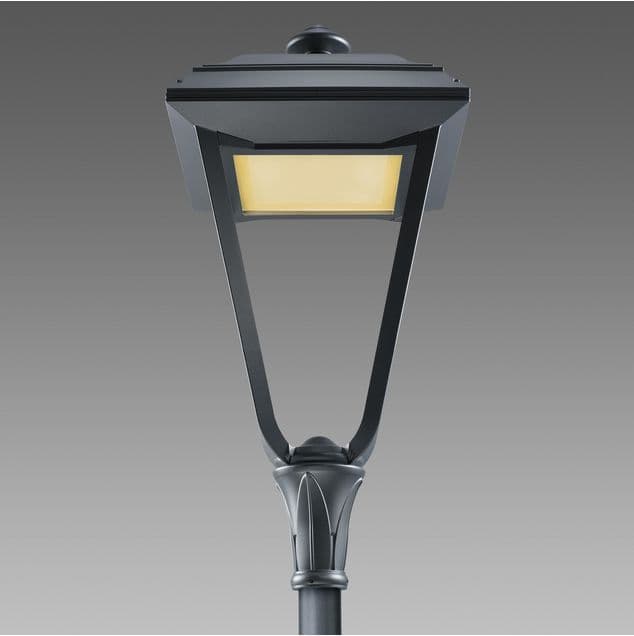

In the history of design, there are classic shapes that are hard to give up. The typical lamp posts with the glass lantern is the familiar image of our cities, imprinted in our memories, and part of our everyday life. The opportunity to renew urban lighting with new technologies, to have a better light quality while saving energy, can go hand in hand with the timeless charm of the old street lamps.Lucerna is not a simple reinterpretation of the classic street post, but a new design that reintroduces a traditional form with renovated details. The lantern is available in two versions, with either a square or circular cross-section, combined with newly styled poles, also with distinctive details such as floral motifs at the base or at the junction with the lighting fixture.

CodeKgNominal CurrentLumen Output - K - CRITotWColour
11.4 kg1050 mA2579 lm - 4000 K - >7040 WAnthracite
11.38 kg1050 mA2398 lm - 3000 K - >7040 WAnthracite
11.34 kg1050 mA2953 lm - 2200 K - amber43 WAnthracite

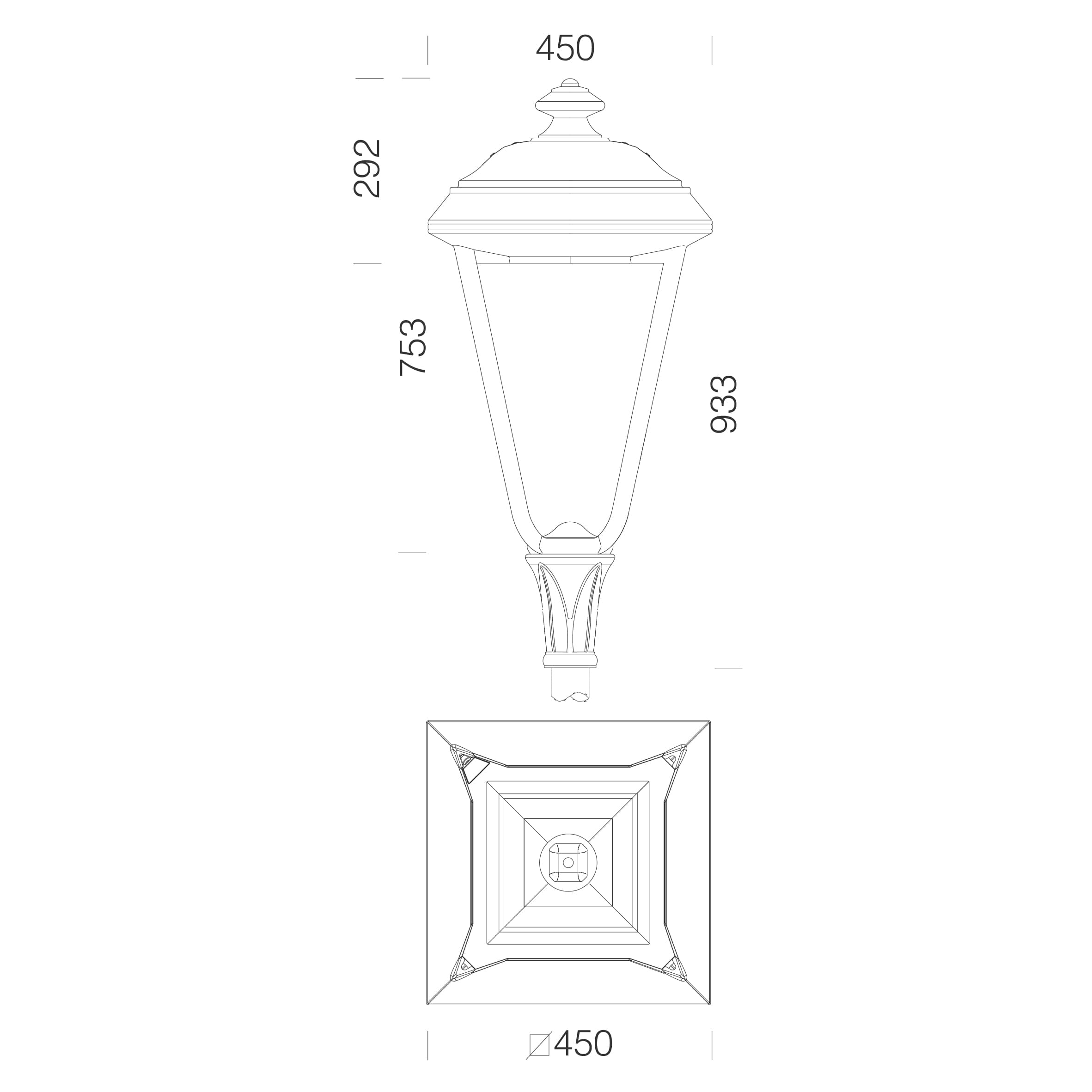

Luminaire length450 mm
Luminaire Width450 mm
Luminaire height933 mm

The reported luminous flux is the flux emitted by the light source with a tolerance of ± 10% compared to the indicated value. The W tot column indicates the total wattage absorbed by the system without exceeding 10% of the indicated value.
